Specifications
Product Information
MFR #
56T110RR40003A2
Zoro #
G2423486
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
5/8 in
Shaft Length
6 in
Overall Length
17 3/8 in
Body Dia.
6 1/2 in
Length Less Shaft
11 5/16 in
Stud Size
#10-32
Bolt Circle Dia.
5 13/16 in
Description

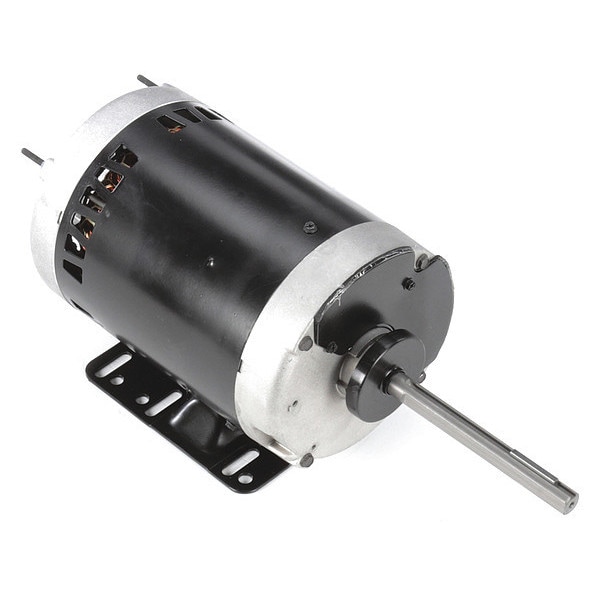

Condenser Fan Motor, Motor Design 3-Phase, Phase Three, 1 1/2 HP, No. of Speeds 1, Voltage 200-230/460V AC, Motor Shaft Rotation CW/CCW, 56Y Frame, Motor Enclosure Design Open Air-Over, Rigid Base Motor Mounting Type, Motor Mounting Position Vertical Shaft Up, Shaft Dia. 5/8 in, Shaft Length 6 in, Motor Thermal Protection Auto, Max. Ambient Temp. 60 Degrees C, Nameplate RPM 1,140, HVAC/R, Condenser Fan, 60 Hz, Full Load Amps 5.1-5.0/2.5 A, Ins. Class B, Motor Service Factor 1
