  6. Farm Duty Motor, Capacitor-Start, 1/2 HP, 115/230V AC, 1,725 Nameplate RPM, 56NY Frame
No Product Image Available

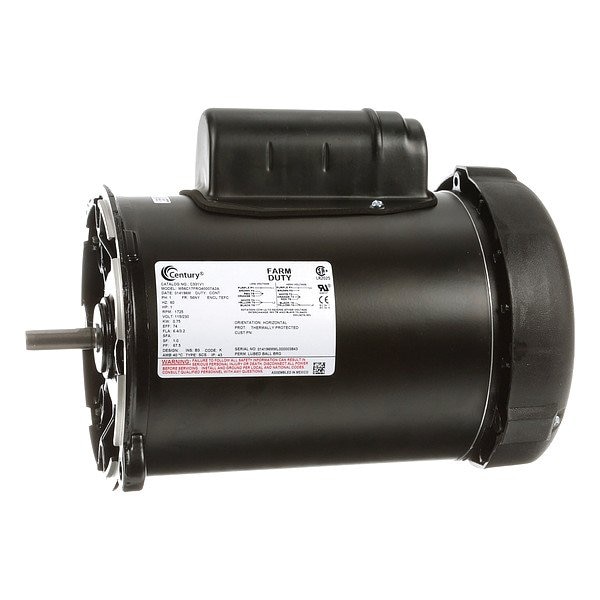

Farm Duty Motor, Capacitor-Start, 1/2 HP, 115/230V AC, 1,725 Nameplate RPM, 56NY Frame

  • Mfr # C331V1

  • Zoro # G412190471

product price:  $515.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
HP
1/2
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C331V1
Zoro #
G412190471
UPC #
786674074522
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Overall Length
13 3/16 in
Shaft Length
1 3/4 in
Length Less Shaft
11 7/16 in
Bolt Circle Dia.
5 15/16 in

Details

Item
Farm Duty Motor
Motor Design
Capacitor-Start
Phase
Single
HP
1/2
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56NY
Motor Service Factor
1
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,725
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Round Base
Motor Shaft Design
Flat
Motor Sub Application
General Purpose
Motor Shaft Rotation
CCW
Standards
CSA Certified, UL Listed
Usable @ 208V
No
Max. Ambient Temp.
104 Degrees F
Full Load Amps
6.4/3.2 A
Nominal Efficiency
74 %
Capacitor Required
Yes
Usable @ 200V
No
Hz
60 Hz
Ins. Class
B
Weight
30 lb
Finish
Powder Coated
Voltage Compatibility
115V AC, 230V AC
Item - Farm Duty Motors
Auger Drive Motor
Motor Bearings
Ball
Duty Cycle
Continuous
No. of Speeds
1
Extended Thru-Bolts
No

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.4/3.2 A, 56NY Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
