Capacitor-Start Belt Drive Motor, 1/3 HP, 48Y Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM

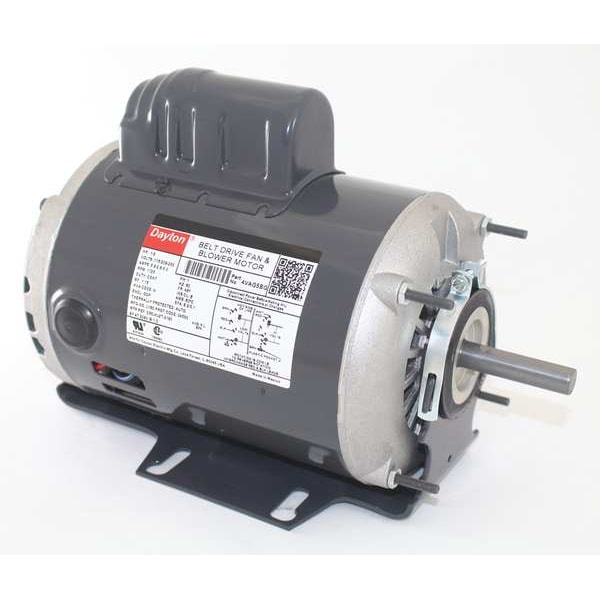

Dayton Capacitor-Start Belt Drive Motor,  1/3 HP,  48Y Frame,  115/208-230V AC Voltage,  1,725 Nameplate RPM 4VAG5
Tap to zoom
Hover or click to zoom
$190.19
  • Item: Belt Drive Motor
  • Motor Design: Capacitor-Start
  • Motor Enclosure Design: Open Dripproof
See full product details
This item ships free.

Total: $190.19

Dayton #4VAG5 Specifications

  • Item: Belt Drive Motor
  • Motor Design: Capacitor-Start
  • Motor Enclosure Design: Open Dripproof
  • HP: 1/3
  • No. of Speeds: 1
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725
  • Voltage: 115/208-230V AC
  • Frame: 48Y
  • Motor Mounting Type: Cradle Base
  • Shaft Dia.: 1/2 in
  • Motor Thermal Protection: Auto
  • Motor Service Factor: 1.15
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
  • Phase: Single
  • Motor Application: HVAC/R
  • Motor Sub Application: Belt Drive Fan/Blower
  • Motor Frame Material: Rolled Steel
  • Motor Shaft Design: Flat
  • Body Dia.: 5 5/8 in
  • Hz: 60
  • Max. Ambient Temp.: 60 Degrees C
  • Ins. Class: B
  • Overall Length: 10 13/16 in
  • Shaft Length: 1 7/8 in
  • Duty: Continuous
  • Resilient Ring Dia.: 2 1/4 in
  • Motor Shaft Rotation: CW/CCW
  • Motor Bearings: Ball
  • Standards: CSA Certified (258501), UL Recognized (E37403)
  • Footnotes: Usable On 208V At 1.0 Service Factor
  • Nominal Efficiency: 57.5 %
  • Frame Material: Steel
  • Length Less Shaft: 9 1/16 in
  • Motor Mounting Position: All Angle
  • Mounting Stud Pattern: 3-5/8 in x 3-5/8 in
  • Full Load Amps: 5.9/3.0-2.8
  • Ring to Ring Center: 8 7/16 in
  • Duty Cycle: Continuous
  • Country of Origin (subject to change): Mexico

Description

Belt Drive Motor, Single Phase, Motor Design Capacitor-Start, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, 5.9/3.0-2.8 Full Load Amps, 48Y Frame, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 1/2 in
