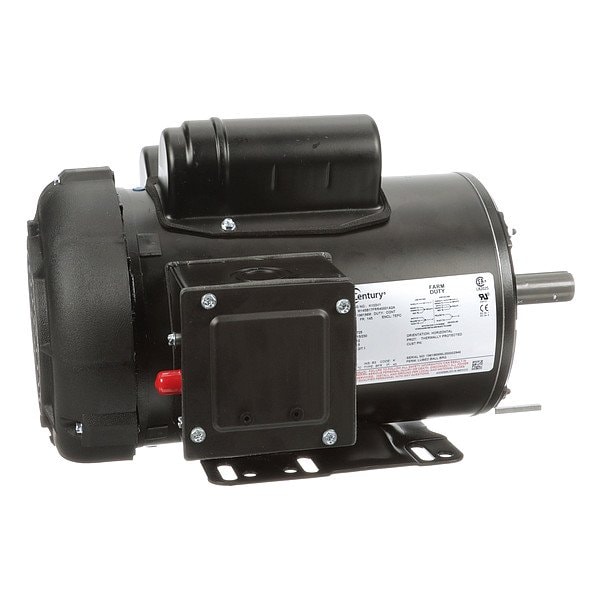

Farm Duty Motor, Capacitor-Start/Run, 1 1/2 HP, 115/230V AC, 1,725 Nameplate RPM, 145 Frame

  • Mfr # K103V1

  • Zoro # G911931308

product price:  $920.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Phase
Single
HP
1 1/2
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
K103V1
Zoro #
G911931308
UPC #
786674074980
Country of Origin
Mexico

Dimensions

Length Less Shaft
12 1/16 in
Shaft Dia.
7/8 in
Bolt Circle Dia.
5 15/16 in
Overall Length
14 5/16 in
Shaft Length
2 1/4 in

Details

Item
Farm Duty Motor
Motor Design
Capacitor-Start/Run
Phase
Single
HP
1 1/2
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
145
Motor Service Factor
1
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,725
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Sub Application
General Purpose
Motor Shaft Design
Keyed
Motor Shaft Rotation
CCW
Standards
CSA Certified, UL Listed
Voltage Compatibility
115V AC, 230V AC
Finish
Powder Coated
Duty Cycle
Continuous
Weight
42 lb
Motor Bearings
Ball
Max. Ambient Temp.
104 Degrees F
Usable @ 200V
No
Hz
60 Hz
Ins. Class
B
Capacitor Required
Yes
No. of Speeds
1
Usable @ 208V
No
Item - Farm Duty Motors
General Purpose Farm Duty Motor
Nominal Efficiency
78.5 %
Full Load Amps
14.2/7.1 A
Extended Thru-Bolts
No

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 14.2/7.1 A, 145 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
