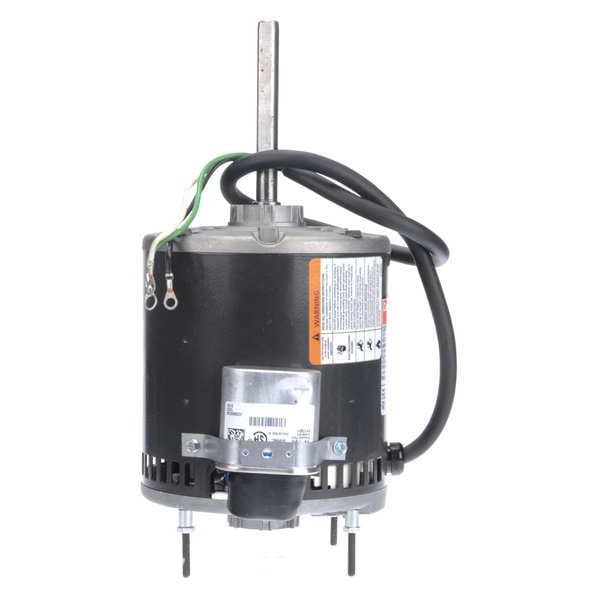

Motor, PSC, 1/6 HP, 1140 RPM, 115V, 48Y, OAO
- Mfr # 5BE62
- Zoro # G3086806
product price:Â
$
267.99
/ea
Free Shipping & Returns
Key Features
Application
Fan/Blower
Mounting Stud Pattern
3 5/8 in
Mounting Stud Location
4/Opposite Shaft End
Ins. Class
B
Full Load Amps
2.2 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5BE62
- Zoro #
- G3086806
- UPC #
- 190735342220
- Country of Origin
- Multiple
Dimensions
- Stud Size
- #10-32
- Body Dia.
- 5 11/16 in
- Shaft Length
- 4 in
- Length Less Shaft
- 7 5/16 in
- Shaft Dia.
- 1/2 in
- Bolt Circle Dia.
- 5 1/8 in
- Shaft Diameter
- 1/2 in
- Mounting Stud Thread Size
- #10-32
- Body Diameter
- 5.7 in
- Overall Length
- 10 3/32 in
- Bolt Circle Diameter
- 5 1/8 in
- Frame Size
- 48Y
- Wire Rope Length
- 10 3/32 in
- Length
- 10 3/32 in
Description
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115V AC, 2.2 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
