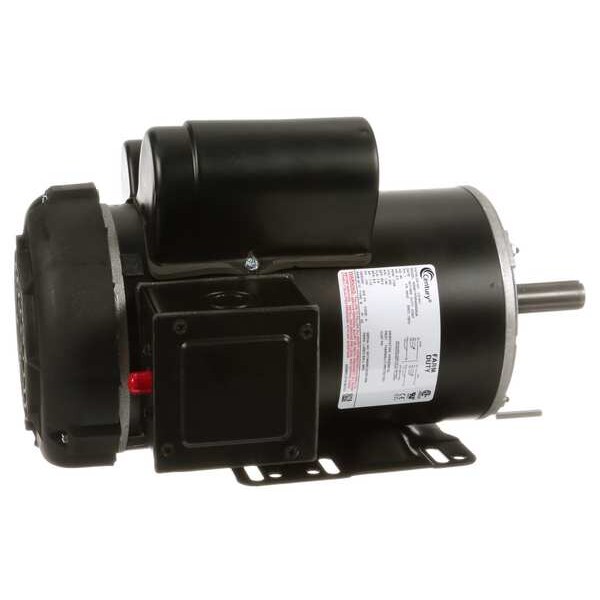

Century Farm Duty Motor, Shaded Pole, 2 HP, 230V AC, 1,725 Nameplate RPM, 56HZ Frame C319V1 - main

Farm Duty Motor, Shaded Pole, 2 HP, 230V AC, 1,725 Nameplate RPM, 56HZ Frame

  • Mfr # C319V1

  • Zoro # G700722834

product price:  $537.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Shaded Pole
Phase
Single
HP
2
RPM Range
1,701-1,800
Voltage
230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
C319V1
Zoro #
G700722834
UPC #
786674074515
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 3/8 in
Overall Length
15 5/8 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in

Details

Item
Farm Duty Motor
Motor Design
Shaded Pole
Phase
Single
HP
2
RPM Range
1,701-1,800
Voltage
230V AC
Frame
56HZ
Motor Service Factor
1.15
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,725
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Type
Rigid Base
Motor Shaft Design
Keyed
Motor Sub Application
Condensate Drain
Motor Shaft Rotation
CCWSE
Standards
CE Certified, CSA Certified, UL Recognized
Usable @ 208V
No
Usable @ 200V
No
Ins. Class
F
No. of Speeds
1
Weight
48 lb
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Full Load Amps
7.8 A
Hz
60 Hz
Duty Cycle
Continuous
Max. Ambient Temp.
104 Degrees F
Motor Bearings
Ball
Item - Farm Duty Motors
General Purpose Farm Duty Motor

Description

Farm Duty Motor, Single Phase, Motor Design Shaded Pole, 2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 7.8 A, 56HZ Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
