This item is Discontinued.

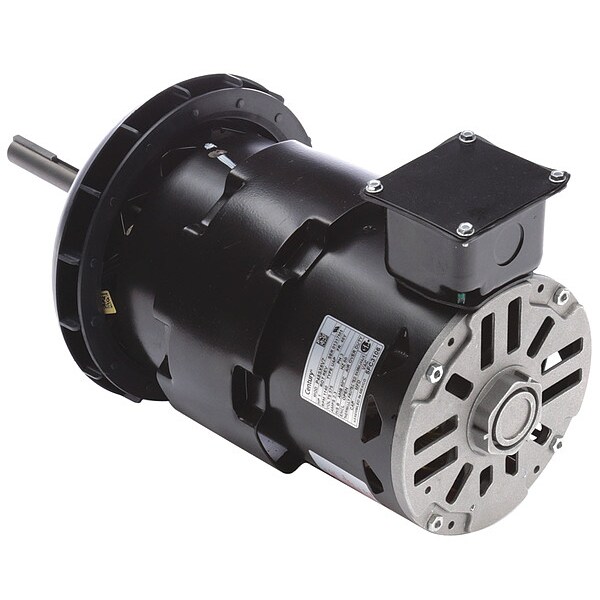

Century MODEL-RFHP-48FR 5FC3106

MODEL-RFHP-48FR (Discontinued)

  • Mfr # 5FC3106
  • Zoro # G0794267
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5FC3106
Zoro #
G0794267
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
0.6"
Shaft Length
5.44"
Manufacturers Warranty Length
1 yr.
Overall Length
15.48"

Details

Frame
48Y
HP
1 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Three Phase
Motor Enclosure Design
Open Enclosed
Motor Mounting Type
Round Belly Band
Motor Shaft Rotation
Reversible
Motor Sub Application
Condenser Fan Motor
Motor Thermal Protection
Automatic
Nameplate RPM
1140 rpm
Number of Shafts
1
Phase
3
Voltage
575V
Motor Bearings
Ball
Ins. Class
B
Max. Ambient Temp.
60 Degrees C
Duty
Air Over
Full Load Amps
2.3A
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Keyed
Hz
60 Hz
Motor Service Factor
1
Application
Condenser Fan

Description

MODEL-RFHP-48FR
