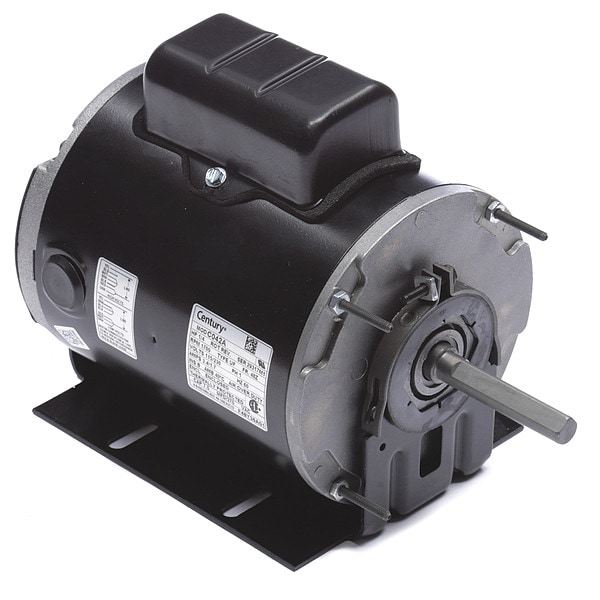

MODEL-RFHP-48FR
Mfr # C042A
Zoro # G3262318
product price: $239.99
/ea
Free Shipping & Returns
Key Features
Frame
48Z
HP
1/4 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
C042A
Zoro #
G3262318
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1/2"
Shaft Length
3.14"
Length Less Shaft
7 in
Bolt Circle Dia.
5 1/8 in
Body Dia.
5.7"
Manufacturers Warranty Length
1 yr.
Overall Length
10.12"
Stud Size
#8-32
Mounting Stud Length
1 in
Description
Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,700 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.4/1.7 A, 48Z Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base
