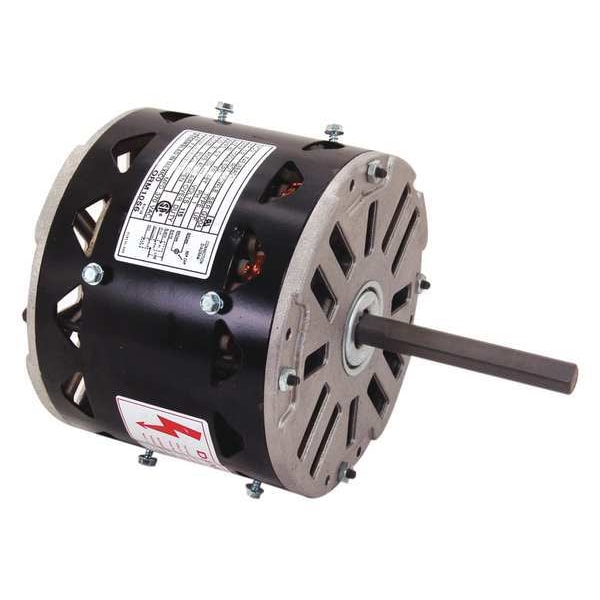

Direct Drive Motor, 3/4 hp, OEM Replacement Brand: Rheem/Ruud Replacement For: 51-23022-41

  • Mfr # ORM1076
  • Zoro # G0875506
product price:
$
236.99
/ea
Free Shipping & Returns

Key Features

Frame
48Y
HP
3/4 hp
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ORM1076
Zoro #
G0875506
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
5 in
Length Less Shaft
5 5/8 in
Body Dia.
5.7 in
Overall Length
10 5/8 in
Wire Rope Length
10 5/8 in
Body Diameter
5.7 in
Shaft Diameter
1/2 in
Frame Size
48Y
Length
10 5/8 in

Details

Frame
48Y
HP
3/4 hp
Item
Direct Drive Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open
Motor Mounting Type
Band
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Nameplate RPM
1,075
No. of Speeds
4
Number of Shafts
1
OEM Replacement Brand
Rheem/Ruud
Phase
Single
RPM Range
1,001-1,100
Voltage
115V AC
Motor Bearings
Ball
Replacement For
51-23022-41
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Full Load Amps
10.5 A
Capacitor Required
Capacitor Included
Standards
CSA Certified, UL Recognized
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1
Application
Rheem Ruud
Voltage Compatibility
115V AC, 120V AC
Weight
19 lb
Motor Mounting Position
Horizontal
Motor Frame Material
Steel
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Rotation
CW/CCW
Mounting
Band
Number of Speeds
4
Frame Material
Steel
Bearing Type
Ball
Insulation Class
B
Shaft Design
Flat
Full Load Current @ 60 Hz
10.5 A
Ambient Temperature - Maximum
40 Degrees C
Sub Application
Fan/Blower
Mounting Position
Horizontal
Compatible Brand
Rheem/Ruud
Nameplate Service Factor @ 60 Hz
1
Motor Enclosure Type
Open

Description

Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 4, Voltage 115V AC, Full Load Amps 10.5 A, 48Y Frame, OEM Replacement Brand Rheem/Ruud, Replacement For 51-23022-41, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open, Motor Mounting Type Belly Band
