  6. Motor, 1 HP, OEM Replacement Brand: Lennox Replacement For: 88C7401

This item is Discontinued.

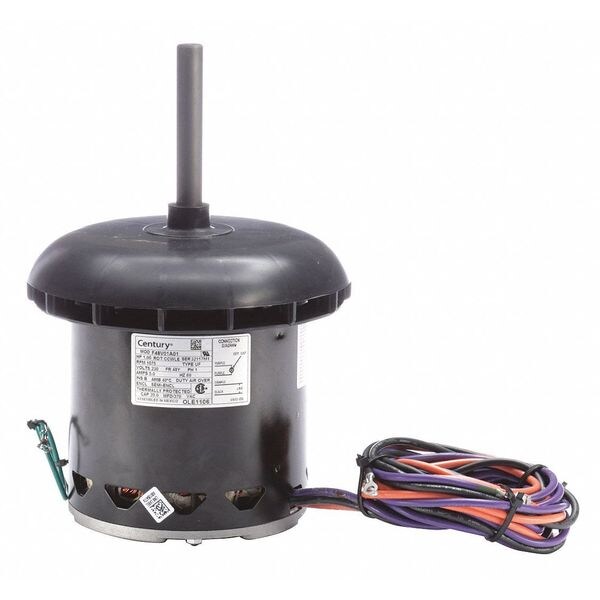

Century Motor, 1 HP, OEM Replacement Brand: Lennox Replacement For: 88C7401 OLE1106

Motor, 1 HP, OEM Replacement Brand: Lennox Replacement For: 88C7401 (Discontinued)

  • Mfr # OLE1106
  • Zoro # G0696674
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
OLE1106
Zoro #
G0696674
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2"
Shaft Length
3-5/8"
Length Less Shaft
6 7/8 in
Body Dia.
5.70"
Manufacturers Warranty Length
1 yr.
Overall Length
10.86"

Details

Frame
48Y
HP
1 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Semi Enclosed
Motor Mounting Type
Round Belly Band
Motor Shaft Rotation
Counterclockwise Lead End
Motor Sub Application
Condenser Fan
Motor Thermal Protection
Automatic
Nameplate RPM
1075 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Lennox
Phase
1
RPM Range
1001-1100
Voltage
230V
Motor Bearings
Ball
Replacement For
88C7401
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
5A
Capacitor Required
2MDW2
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Lennox
Voltage Compatibility
115/230V AC, 120/240V AC, 230V AC, 240V AC
Usable @ 208V
No
Motor Frame Material
Steel
Usable @ 200V
No
Motor Mounting Position
Vertical Shaft Up
Weight
24 lb
Rotation
CCWLE
Mounting
Band
Number of Speeds
1

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 230V AC, Full Load Amps 5.0 A, 48Y Frame, OEM Replacement Brand Lennox, Replacement For 88C7401, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band
