- Motor, 1/10, 1/20, 1/30 HP, OEM Replacement Brand: Acme Engineering Replacement For: F48K04A27
Shop Alternate Products
This Product is Discontinued
Century

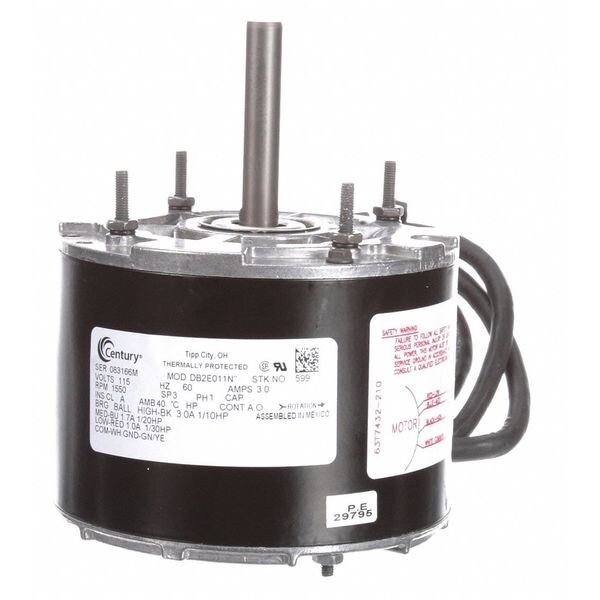

Motor, 1/10, 1/20, 1/30 HP, OEM Replacement Brand: Acme Engineering Replacement For: F48K04A27 (Discontinued)
Mfr # 599
Zoro # G2034186
Free Shipping & Returns
This Product is Discontinued
Key Features
- Frame 42
- HP 1/10, 1/20, 1/30 HP
- Motor Application OEM Replacement
- Motor Design Shaded Pole
- Motor Enclosure Design Open Air-Over
Customers Also Purchased
- Brand Century
-
MFR #
599
-
Zoro #
G2034186
- Country of Origin Mexico
- Category OEM Replacement Motors
Dimensions
Shaft Dia. | 1/2" |
Shaft Length | 2-9/16" |
Length Less Shaft | 5 13/16 in |
Bolt Circle Dia. | 3-7/8" |
Body Dia. | 5" |
Manufacturers Warranty Length | 1 yr. |
Overall Length | 6.34" |
Stud Size | #10-32 |
Mounting Stud Length | 5/8 in |
Details
Frame | 42 |
HP | 1/10, 1/20, 1/30 HP |
Item | Motor |
Motor Application | OEM Replacement |
Motor Design | Shaded Pole |
Motor Enclosure Design | Open Air-Over |
Motor Mounting Type | Extended Studs |
Motor Shaft Rotation | Clockwise Lead End |
Motor Sub Application | Direct Drive Fan/Blower |
Motor Thermal Protection | Automatic |
Nameplate RPM | 1550 rpm |
No. of Speeds | 3 |
Number of Shafts | 1 |
OEM Replacement Brand | Acme Engineering |
Phase | 1 |
RPM Range | 1501-1600 |
Voltage | 115V |
Motor Bearings | Ball |
Replacement For | F48K04A27 |
Ins. Class | A |
Max. Ambient Temp. | 40 Degrees C |
Duty | Continuous Air Over |
Full Load Amps | 3A |
Capacitor Required | No |
Standards | UL Recognized, CSA Certified |
Motor Shaft Design | Flat |
Hz | 60 Hz |
Motor Service Factor | 1.00 |
Application | Fans and Blowers |
Mounting Stud Pattern | 2-3/4" x 2-3/4" |
Voltage Compatibility | 115V AC, 120V AC |
Weight | 8 lb |
Usable @ 200V | No |
Motor Frame Material | Steel |
Mounting Stud Location | 4/Opposite Lead End |
Extended Thru-Bolts | No |
Duty Cycle | Continuous |
Usable @ 208V | No |
Description
Direct Drive Motor, Single Phase, Motor Design Shaded Pole, 1/10 to 1/30 HP, Nameplate RPM 1,550, No. of Speeds 3, Voltage 115V AC, Full Load Amps 3 A, 42 Frame, OEM Replacement Brand Acme Engineering, Replacement For F48K04A27, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud
