  11. Motor, 1/10 HP, 1075 rpm, 42Y, 115V
This item is Discontinued.

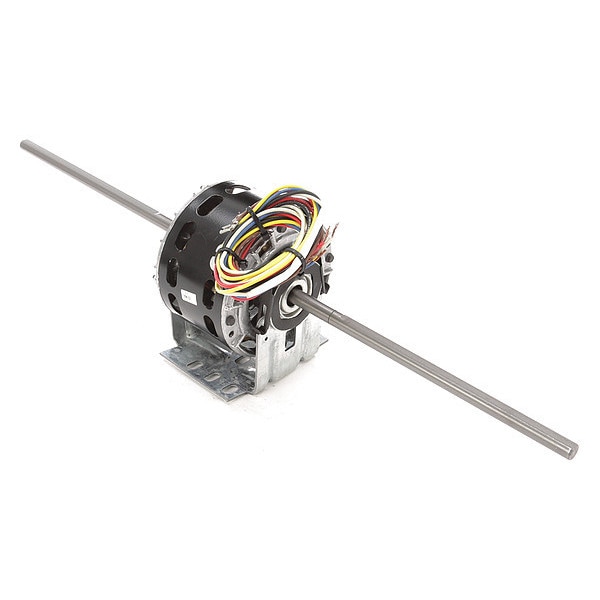

Century Motor, 1/10 HP, 1075 rpm, 42Y, 115V 362A

Motor, 1/10 HP, 1075 rpm, 42Y, 115V (Discontinued)

  • Mfr # 362A
  • Zoro # G2866394
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
362A
Zoro #
G2866394
UPC #
786674006691
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Overall Length
24 3/4 in
Shaft Length
10 5/8 in
Length Less Shaft
3 9/16 in
Body Dia.
5 in

Details

Motor Design
Permanent Split Capacitor
HP
1/10 hp
RPM Range
1,001-1,100
No. of Speeds
4
Voltage
115V AC
Motor Shaft Rotation
CWLE
Frame
42Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Cradle Base
Duty
Continuous
Capacitor Required
2MDV4
Voltage Compatibility
115V AC, 120V AC
Full Load Amps
1.7 A
Hz
60
Motor Bearings
Sleeve
Max. Ambient Temp.
40 Degrees C
Standards
CSA Certified, UL Recognized
Number of Shafts
2
Phase
Single
Motor Thermal Protection
Auto
Application
Room A/C
Nameplate RPM
1,075
Item
Room Air Conditioner Motor
Ins. Class
B
Motor Application
OEM Replacement
Motor Service Factor
1
Motor Mounting Position
All Angle
Usable @ 200V
Not Usable at 200V
Ring to Ring Center
4 in
Motor Sub Application
Room Air Conditioner
Usable @ 208V
Not Usable at 208V
Motor Shaft Design
Flat
Weight
11 lb
Motor Frame Material
Steel
Duty Cycle
Continuous
Rotation
CWSE
Mounting
Cradle Base
Number of Speeds
4

Description

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/10 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 4, Voltage 115V AC, Full Load Amps 1.7 A, 42Y Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Cradle Base
