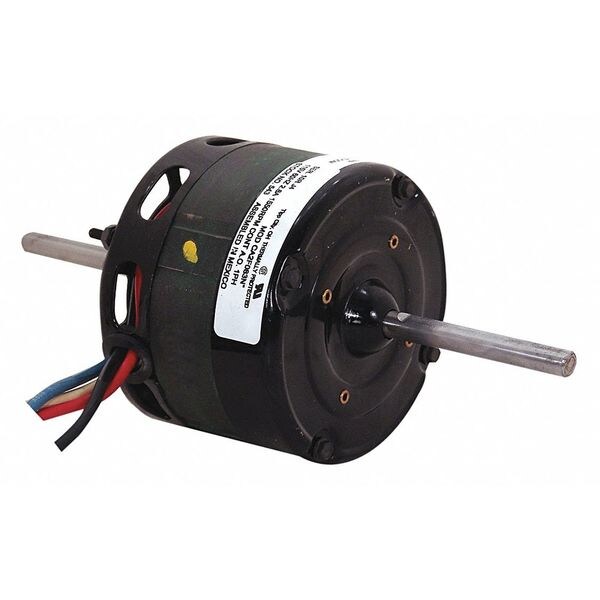

Motor, 1/15, 1/20, 1/25 HP, OEM Replacement Brand: Fedders Replacement For: S203-51-1 (Discontinued)
- Mfr # 543
- Zoro # G2034055
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
543
Zoro #
G2034055
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1/2"
Shaft Length
3-1/4" x 3-1/4"
Length Less Shaft
3 1/4 in
Bolt Circle Dia.
3-7/8"
Body Dia.
4.28"
Manufacturers Warranty Length
1 yr.
Overall Length
9-3/4"
Stud Size
#8-32
Mounting Stud Length
5/16 in
Description
Direct Drive Motor, Single Phase, Motor Design Shaded Pole, 1/15 to 1/25 HP, Nameplate RPM 1,550, No. of Speeds 3, Voltage 115V AC, Full Load Amps 2.8/2.0/1.6 A, 4.4 in Frame, OEM Replacement Brand Fedders, Replacement For S203-51-1, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud
