Shop CENTURY

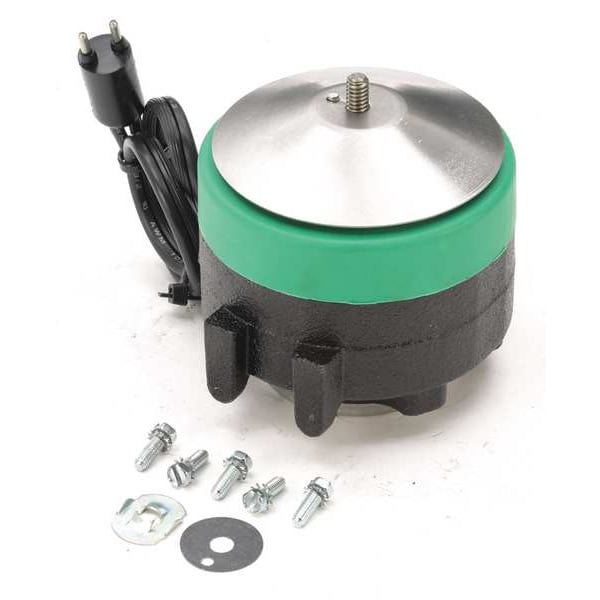

Motor, 13W HP, OEM Replacement Brand: Hussmann Replacement For: 4410547

  • Mfr # 9211

  • Zoro # G2033809

product price:
$
218.99
/ea
Free Shipping & Returns

Key Features

Frame
Non-Standard
HP
13W HP
Motor Application
OEM Replacement
Motor Design
ECM
Motor Enclosure Design
Totally Enclosed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9211
Zoro #
G2033809
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
1/4 in
Shaft Length
7/16 in
Length Less Shaft
3 5/16 in
Bolt Circle Dia.
2-13/16"
Body Dia.
3-13/16"
Manufacturers Warranty Length
1 yr
Overall Length
3 13/16 in
Body Diameter
3.9 in
Wire Rope Length
3 13/16 in
Shaft Diameter
1/4 in
Frame Size
Non-Standard
Bolt Circle Diameter
2 13/16 in
Length
3 13/16 in

Details

Frame
Non-Standard
HP
13W HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
ECM
Motor Enclosure Design
Totally Enclosed
Motor Mounting Type
Rear/Foot
Motor Shaft Rotation
Clockwise Lead End
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
None
Nameplate RPM
1725 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Hussmann
Phase
1
RPM Range
1701-1800
Voltage
115V
Motor Bearings
Unit
Replacement For
4410547
Ins. Class
A
Max. Ambient Temp.
40 Degrees C
Full Load Amps
0.3A
Capacitor Required
No
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Threaded
Hz
60 Hz
Motor Service Factor
1.00
Application
Fans and Blowers
Voltage Compatibility
115V AC, 120V AC
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Weight
3 lb
Duty Cycle
Continuous
Extended Thru-Bolts
No
Motor Frame Material
Cast Iron
Number of Speeds
1
Full Load Current @ 60 Hz
0.3 A
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
A
Frame Material
Cast Iron
Duty
Continuous
Bearing Type
Unit
Compatible Brand
Hussmann
Motor Enclosure Type
Totally Enclosed Air-Over
Nameplate Service Factor @ 60 Hz
1
Sub Application
Refrigerator/Freezer
Shaft Design
Threaded

Description

Single Phase, Motor Design Not Applicable, 13W HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 0.3 A, Non-Standard Frame, OEM Replacement Brand Hussmann, Replacement For 4410547, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over
