Motor, 1/6, 1/12, 1/20 HP, OEM Replacement Brand: Penn Ventilator Replacement For: 63748-0

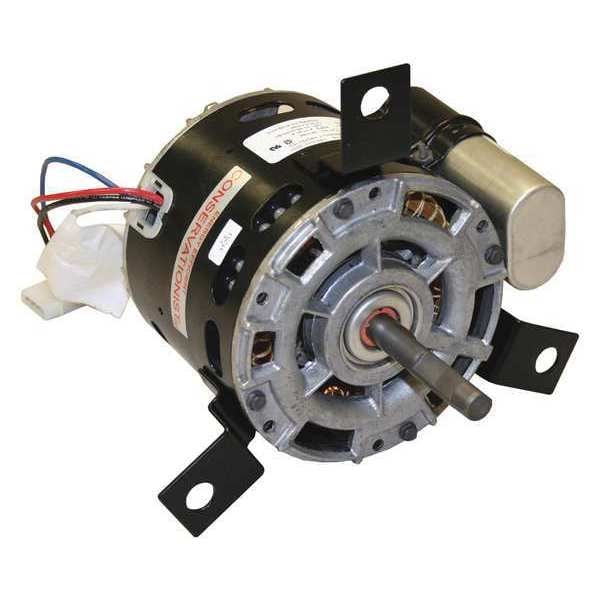

Century Motor,  1/6,  1/12,  1/20 HP,  OEM Replacement Brand: Penn Ventilator Replacement For: 63748-0 OPV748
Hover or click to zoom Tap to zoom
$234.99
  • Frame: 42Y
  • HP: 1/6, 1/12, 1/20 HP
  • Item: Motor
See full product details
This item ships free.

Total: $234.99

Century #OPV748 Specifications

  • Frame: 42Y
  • HP: 1/6, 1/12, 1/20 HP
  • Item: Motor
  • Motor Application: OEM Replacement
  • Motor Design: Permanent Split Capacitor
  • Motor Enclosure Design: Open Enclosed
  • Motor Mounting Type: Lug
  • Motor Shaft Rotation: Counterclockwise Lead End
  • Motor Sub Application: Condenser Fan Motor
  • Motor Thermal Protection: Automatic
  • Nameplate RPM: 1550/1300/1050 rpm
  • No. of Speeds: 3
  • Number of Shafts: 1
  • OEM Replacement Brand: Penn Ventilator
  • Phase: 1
  • RPM Range: 1501-1600
  • Shaft Dia.: 1/2"
  • Shaft Length: 2-5/8"
  • Voltage: 115V
  • Motor Bearings: Sleeve
  • Replacement For: 63748-0
  • Ins. Class: B
  • Max. Ambient Temp.: 50 Degrees C
  • Length Less Shaft: 4 1/4 in
  • Duty: Air Over
  • Full Load Amps: 2.1/1.9/1.4A
  • Body Dia.: 5"
  • Capacitor Required: Included
  • Manufacturers Warranty Length: 1 yr.
  • Overall Length: 6.88"
  • Standards: UL Recognized (E46412), CSA Certified (LR43341)
  • Motor Shaft Design: Double Flat
  • Hz: 60 Hz
  • Motor Service Factor: 1.00
  • Application: Condenser Fan
  • Voltage Compatibility: 115V AC, 120V AC
  • Conduit Box Position: F2
  • Weight: 10 lb
  • Usable @ 200V: No
  • Usable @ 208V: No
  • Motor Mounting Position: Horizontal
  • Motor Frame Material: Steel
  • Rotation: CW/CCW
  • Country of Origin (subject to change): Mexico

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 HP, Nameplate RPM 1,550/1,300/1,050, No. of Speeds 3, Voltage 115V AC, Full Load Amps 2.1/1.90/1.40, 42Y Frame, OEM Replacement Brand Penn Ventilator, Replacement For 63748-0, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Lug
