Motor, 1/6 HP, OEM Replacement Brand: Rheem/Ruud Replacement For: 51-21853-01

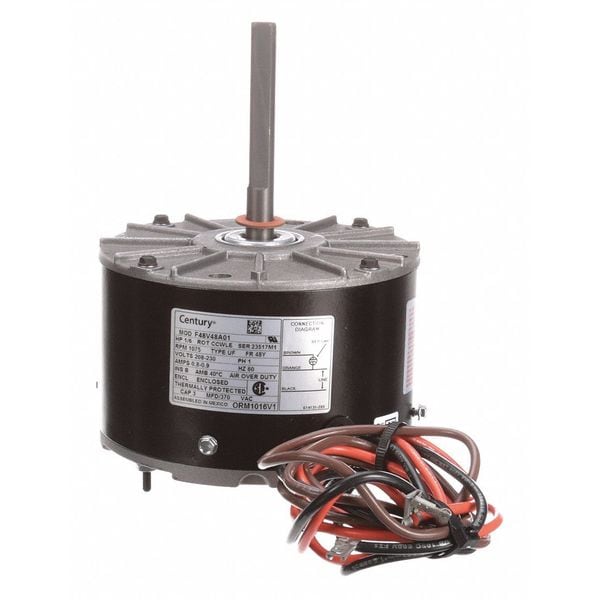

Century Motor,  1/6 HP,  OEM Replacement Brand: Rheem/Ruud Replacement For: 51-21853-01 ORM1016V1
Hover or click to zoom Tap to zoom
$161.69
  • Frame: 48Y
  • HP: 1/6 HP
  • Item: Motor
See full product details
This item ships free.

Total: $161.69

Century #ORM1016V1 Specifications

  • Frame: 48Y
  • HP: 1/6 HP
  • Item: Motor
  • Motor Application: OEM Replacement
  • Motor Design: Permanent Split Capacitor
  • Motor Enclosure Design: Totally Enclosed
  • Motor Mounting Type: Extended Studs
  • Motor Shaft Rotation: Counterclockwise Lead End
  • Motor Sub Application: Condenser Fan Motor
  • Motor Thermal Protection: Automatic
  • Nameplate RPM: 1075 rpm
  • No. of Speeds: 1
  • Number of Shafts: 1
  • OEM Replacement Brand: Rheem/Ruud
  • Phase: 1
  • RPM Range: 1001-1100
  • Shaft Dia.: 1/2"
  • Shaft Length: 3-3/4"
  • Voltage: 208-230V
  • Motor Bearings: Sleeve
  • Replacement For: 51-21853-01
  • Ins. Class: B
  • Max. Ambient Temp.: 40 Degrees C
  • Length Less Shaft: 4 in
  • Duty: Air Over
  • Bolt Circle Dia.: 5-3/16"
  • Full Load Amps: 0.8-0.9A
  • Body Dia.: 5.7"
  • Capacitor Required: 2MDV2
  • Manufacturers Warranty Length: 1 yr.
  • Overall Length: 7-3/8"
  • Standards: UL Recognized, CSA Certified
  • Motor Shaft Design: Double Flat
  • Stud Size: #8-32
  • Hz: 60 Hz
  • Motor Service Factor: 1.00
  • Application: Condenser Fan
  • Mounting Stud Pattern: 3-5/8" x 3-5/8"
  • Voltage Compatibility: 115/208-230V AC, 208-230V AC, 208-240V AC
  • Usable @ 200V: No
  • Usable @ 208V: Yes
  • Weight: 9 lb
  • Motor Frame Material: Steel
  • Motor Mounting Position: Vertical Shaft Down
  • Rotation: CCWLE
  • Country of Origin (subject to change): Mexico

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 0.90-0.80, 48Y Frame, OEM Replacement Brand Rheem/Ruud, Replacement For 51-21853-01, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
