  11. Motor, PSC, 1/10 HP, 1625,208-230V, 42Y, OAO

This item is Discontinued.

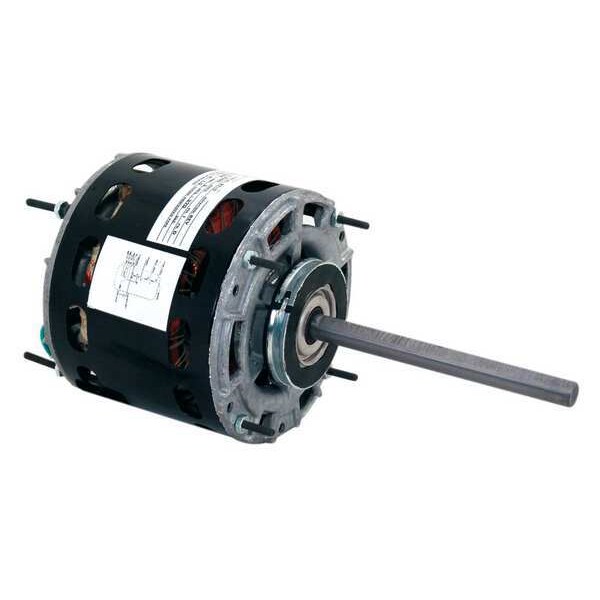

Century Motor, PSC, 1/10 HP, 1625,208-230V, 42Y, OAO 9710

Motor, PSC, 1/10 HP, 1625,208-230V, 42Y, OAO (Discontinued)

  • Mfr # 9710
  • Zoro # G1888013
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9710
Zoro #
G1888013
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
5 13/16 in
Bolt Circle Dia.
4 5/8 in
Stud Size
#8-32
Shaft Dia.
1/2 in
Body Dia.
5 in
Resilient Ring Dia.
2 1/2 in
Length Less Shaft
5 3/16 in
Lead Length
13 in
Overall Length
10 1/2 in

Details

Mounting Stud Location
Both Ends
Motor Service Factor
1
Duty
Continuous
Ins. Class
B
Motor Mounting Type
Ring
Frame
42Y
Motor Shaft Design
Flat
Includes
Resilient Mounting Ring
Motor Enclosure Design
Open Air-Over
Max. Ambient Temp.
40 Degrees C
Application
Blowers, Fans and Air Circulators
Mounting Stud Pattern
3-1/4 in x 3-1/4 in
Motor Sub Application
Room Air Conditioner
Motor Mounting Position
Horizontal
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
RPM Range
1,601-1,700
Phase
Single
Hz
60 Hz
Standards
CSA Certified, UL Recognized
Item
Room Air Conditioner Motor
Motor Application
HVAC/R
Nameplate RPM
1,625
Ring to Ring Center
4 13/16 in
Motor Shaft Rotation
CW/CCW
Capacitor Required
2MDV4
HP
1/10
Voltage
208-230V AC
Motor Design
Permanent Split Capacitor
No. of Speeds
3
Motor Thermal Protection
Auto
Motor Bearings
Sleeve
Full Load Amps
0.84 A
Number of Shafts
1
Usable @ 208V
Yes
Weight
8 lb
Stud Quantity
4
Motor Frame Material
Steel
Usable @ 200V
No
Mounting Holes
4
Number of Speeds
3
Mounting
Ring

Description

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/10 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 3, Voltage 208-230V AC, 0.84 A Full Load Amps, 42Y Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Motor Frame Material Steel
