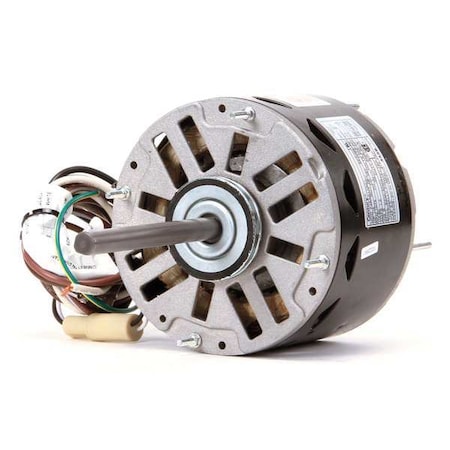

Motor, PSC, 1/4 HP, 1075, 208-230V, 48Y, OAO

CENTURY| Zoro #: G1229785| Mfr #: 443B

$144.37 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1229785 Mfr #: 443B
Motor Shaft Design: FlatMotor Service Factor: 1.00
Motor Bearings: SleeveMotor Application: HVAC/R
Phase: 1Motor Sub Application: Direct Drive Fan/Blower
Motor Enclosure Design: Open Air-OverItem: Direct Drive Blower Motor
HP: 1/4Motor Thermal Protection: Auto
Motor Design: Permanent Split CapacitorShaft Dia.: 1/2"
Duty: ContinuousIncludes: Resilient Mounting Rings
Application: Blowers, Fans and Air CirculatorsVoltage Compatibility: 115/208-230, 208-230, 208-240
Standards: UL Recognized, CSA CertifiedMounting Stud Pattern: 3-5/8" x 3-5/8"
Manufacturers Warranty Length: 1 yr.Ins. Class: B
Voltage: 208-230Motor Shaft Rotation: CW/CCW
Shaft Length: 5"Mounting Stud Length: 1/2", 1-3/16"
Motor Mounting Position: HorizontalOverall Length: 10"
RPM Range: 1001-1100Motor Mounting Type: Ring
Hz: 60Mounting Stud Location: Both Ends
No. of Speeds: 1Capacitor Required: 2MDV4
Resilient Ring Dia.: 2-1/4"Max. Ambient Temp.: 60 Degrees C
Nameplate RPM: 1075Ring to Ring Center: 4-9/16"
Length Less Shaft: 5"Stud Size: #8-32
Body Dia.: 5-5/8"Full Load Amps: 1.5
Bolt Circle Dia.: 5.15"Frame: 48Y
Country of Origin (subject to change): Mexico

Product Description

Direct Drive Blower Motor, Permanent Split Capacitor Motor Type, Open Air-Over Enclosure, 1/4 HP, 1075 Nameplate RPM, Voltage 208-230, 1.5 Full Load Amps, 60 Hz, 1 Phase, 48Y Frame, Service Factor 1.0, Max. Ambient Temp. 60 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 1, Mounting Ring, Shaft Orientation Horizontal, Bearings Sleeve, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 5-5/8 In., Length Less Shaft 5 In., Overall Length 10 In., Shaft Dia. 1/2 In.
