Century

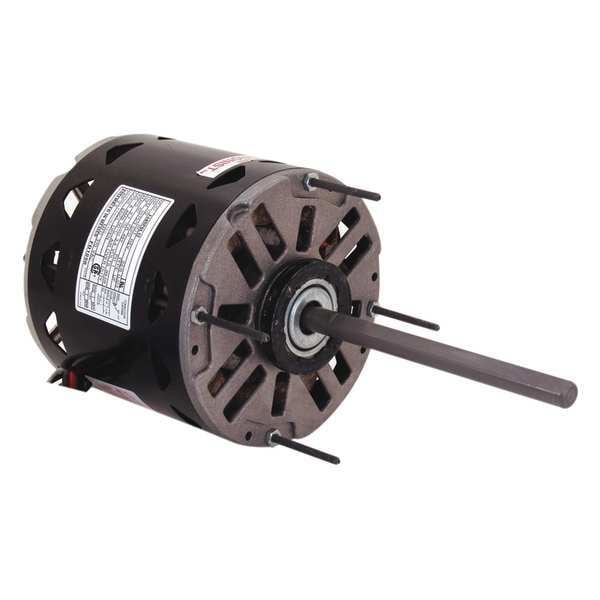

Motor, PSC, 1/4 HP, 1075 RPM, 115V, 48Y, OAO (Discontinued)

Free Shipping & Returns

Key Features

  • Includes Belly Band, Resilient Mounting Ring
  • Voltage 115V AC
  • Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Motor Bearings Sleeve
  • Length Less Shaft 5 3/16 in
See all product information

Product Information

Dimensions

Length Less Shaft 5 3/16 in
Shaft Length 5 1/2 in
Stud Size #8-32
Resilient Ring Dia. 2 1/4 in
Body Dia. 5 5/8 in
Bolt Circle Dia. 5 1/8 in
Shaft Dia. 1/2 in
Lead Length 25 in
Overall Length 10 1/8 in

Details

Includes Belly Band, Resilient Mounting Ring
Voltage 115V AC
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Bearings Sleeve
RPM Range 1,001-1,100
Motor Thermal Protection Auto
Motor Sub Application Direct Drive Fan/Blower
Mounting Stud Pattern 2-9/16 in x 4-7/16 in
Ring to Ring Center 4 11/16 in
Nameplate RPM 1,075
Max. Ambient Temp. 40 Degrees C
Mounting Stud Location Shaft End
Motor Service Factor 1
Full Load Amps 3.1 A
Standards CSA Certified, UL Recognized
Capacitor Required Included
Motor Shaft Rotation CW/CCW
Hz 60 Hz
Ins. Class B
Motor Mounting Position Horizontal
Motor Design Permanent Split Capacitor
Motor Enclosure Design Open Air-Over
Duty Continuous
Application Blowers, Fans and Air Circulators
Item Direct Drive Blower Motor
Phase Single
Frame 48Y
Motor Shaft Design Flat
Motor Mounting Type Ring
Motor Application HVAC/R
HP 1/4
No. of Speeds 3
Motor Frame Material Steel
Weight 11 lb
Usable @ 200V No
Number of Shafts 1
Usable @ 208V No
Mounting Holes (4) #8-32
Mounting Ring
Number of Speeds 3

Description

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,075, No. of Speeds 3, Voltage 115V AC, Full Load Amps 3.1 A, 48Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Lead Length 25 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring, Motor Mounting Position Horizontal, Number of Shafts 1
