Century

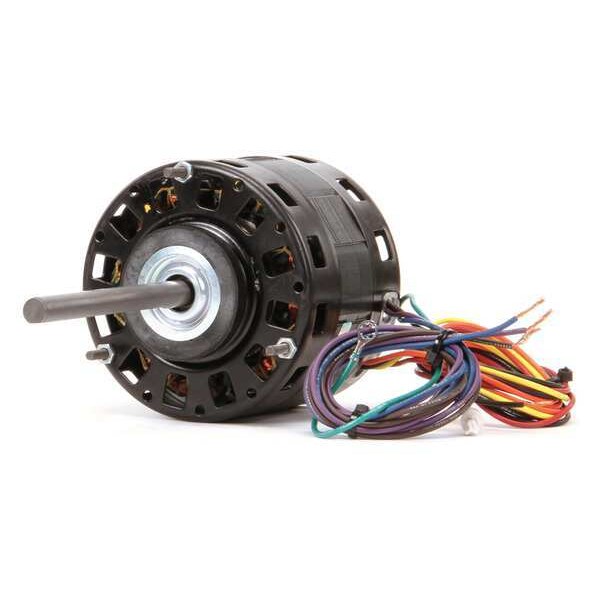

Motor, PSC, 1/5 HP, 1075 RPM, 230V, 42Y, OAO
- Zoro #: G0479875
- Mfr #: B6507
Tap to zoom
Hover or click to zoom
$192.44
- Ring to Ring Center: 4 9/16 in
- Application: Blowers, Fans and Air Circulators
- Bolt Circle Dia.: 4 7/16 in
This item ships free.
(Sign in or create an account for free shipping on orders over $50)
Total: $192.44
Century #B6507 Specifications
- Zoro #: G0479875
- Mfr #: B6507
- Ring to Ring Center: 4 9/16 in
- Application: Blowers, Fans and Air Circulators
- Bolt Circle Dia.: 4 7/16 in
- Motor Enclosure Design: Open Air-Over
- Mounting Stud Pattern: 3-1/8 in x 3-1/8 in
- Motor Mounting Position: Horizontal
- Includes: Resilient Mounting Ring
- Shaft Dia.: 1/2 in
- Frame: 42Y
- Full Load Amps: 1.30, 0.90, 0.70
- Nameplate RPM: 1,075
- Motor Bearings: Sleeve
- HP: 1/5
- Motor Sub Application: Direct Drive Fan/Blower
- Motor Shaft Design: Flat
- Standards: CSA Certified, UL Recognized
- Resilient Ring Dia.: 2 1/2 in
- Item: Direct Drive Blower Motor
- Motor Design: Permanent Split Capacitor
- Length Less Shaft: 4 15/16 in
- No. of Speeds: 3
- Ins. Class: B
- Voltage: 230V AC
- Stud Size: #10-32
- Shaft Length: 5 1/2 in
- Body Dia.: 5 in
- Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
- Motor Shaft Rotation: CW/CCW
- Hz: 60 Hz
- Motor Service Factor: 1
- Max. Ambient Temp.: 40 Degrees C
- Phase: Single
- Motor Application: HVAC/R
- Motor Mounting Type: Ring
- Capacitor Required: 2MDV6
- Motor Thermal Protection: Auto
- Duty: Continuous
- RPM Range: 1,001-1,100
- Mounting Holes: 4
- Lead Length: 36 in
- Usable @ 200V: No
- Stud Quantity: 4
- Number of Shafts: 1
- Usable @ 208V: No
- Overall Length: 9 15/16 in
- Weight: 11 lb
- Country of Origin (subject to change): Mexico
Description
Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/5 HP, Nameplate RPM 1,075, No. of Speeds 3, Voltage 230V AC, Full Load Amps 1.30, 0.90, 0.70, 42Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Lead Length 36 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring, Motor Mounting Position Horizontal
