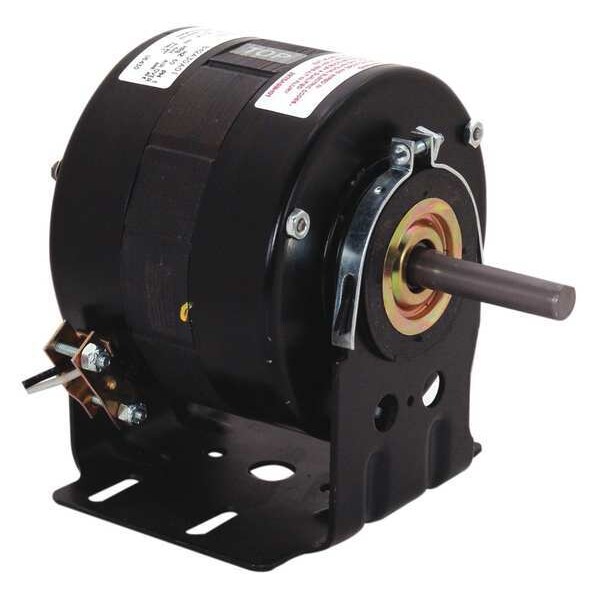

Motor, Sh Pole, 1/15 HP, 1050, 115V, 42Y, TEAO

CENTURY| Zoro #: G1513766| Mfr #: U6432

$107.00 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1513766 Mfr #: U6432
Motor Shaft Design: FlatHz: 60
Item: Direct Drive Blower MotorHP: 1/15
Motor Thermal Protection: AutoMotor Shaft Rotation: CCWLE
Motor Service Factor: 1.00Nameplate RPM: 1050
No. of Speeds: 1Full Load Amps: 3.3
Phase: 1Ins. Class: B
Application: Blowers, Fans and Air CirculatorsFrame: 42Y
Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240Voltage: 115
Motor Application: HVAC/RMotor Enclosure Design: Totally Enclosed Air-Over
Motor Sub Application: Direct Drive Fan/BlowerMax. Ambient Temp.: 40 Degrees C
Body Dia.: 5"Capacitor Required: No
Motor Design: Shaded PoleMotor Bearings: Sleeve
Standards: UL Recognized, CSA CertifiedShaft Dia.: 1/2"
Duty: ContinuousMotor Mounting Position: Horizontal
Shaft Length: 2-1/8"Motor Mounting Type: Cradle Base
Resilient Ring Dia.: 2-1/2"Ring to Ring Center: 4-5/16"
Length Less Shaft: 4-5/8"Country of Origin (subject to change): Mexico

Product Description

Direct Drive Blower Motor, Shaded Pole Motor Type, Totally Enclosed Air-Over Enclosure, Cradle Base HP, 1050 Nameplate RPM, Voltage 115, 3.3 Full Load Amps, 60 Hz, 1 Phase, 42Y Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 1, Mounting Cradle Base, Shaft Orientation Horizontal, Bearings Sleeve, Thermal Protection Auto, Rotation CCWLE, Body Dia. 5 In., Length Less Shaft 4-5/8 In., Shaft Dia. 1/2 In., Shaft Length 2-1/8 In.
