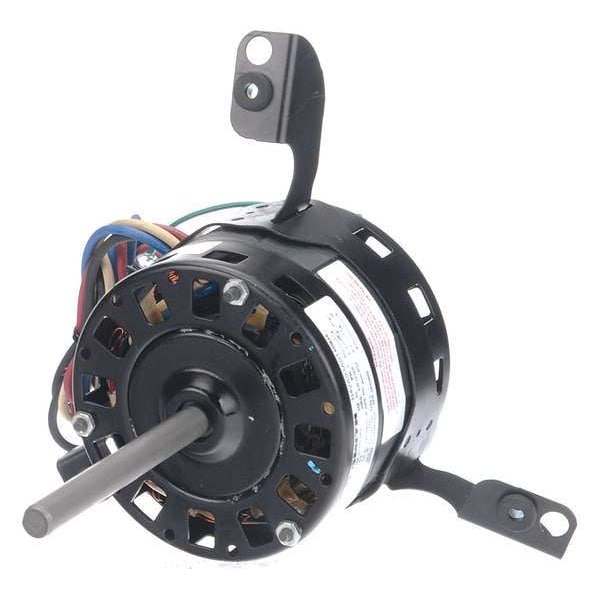

Motor, Sh Pole, 1/6 HP, 1050,115V, 42Y, OAO
- Zoro #: G0546664
- Mfr #: BL6533
Century #BL6533 Specifications
| |
| Ins. Class: A | Duty: Continuous |
| Motor Bearings: Sleeve | Motor Mounting Position: Horizontal |
| Motor Service Factor: 1 | Max. Ambient Temp.: 40 Degrees C |
| Motor Application: HVAC/R | Motor Shaft Rotation: CCWLE |
| Standards: CSA Certified, UL Recognized | Shaft Dia.: 1/2 in |
| Frame: 42Y | Shaft Length: 4 5/8 in |
| Item: Direct Drive Blower Motor | Body Dia.: 5 in |
| Phase: Single | Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
| Motor Shaft Design: Flat | Motor Thermal Protection: Auto |
| Voltage: 115V AC | Motor Mounting Type: Flexible Arms |
| Length Less Shaft: 4 3/8 in | Motor Design: Shaded Pole |
| Full Load Amps: 5.0 | Nameplate RPM: 1,050 |
| Capacitor Required: No | Application: Blowers, Fans and Air Circulators |
| Motor Enclosure Design: Open Air-Over | Motor Sub Application: Direct Drive Fan/Blower |
| Hz: 60 | No. of Speeds: 3 |
| RPM Range: 1,001-1,100 | HP: 1/6 |
| Usable @ 200V: No | Number of Shafts: 1 |
| Weight: 10 lb | Lead Length: 24 in |
| Mounting Holes: 4 | Overall Length: 8 13/16 in |
| Stud Quantity: 4 | Usable @ 208V: No |
| Country of Origin (subject to change): Mexico | |
Help us improve our product informationDescription
Direct Drive Blower Motor, Single Phase, Motor Design Shaded Pole, 1/6 HP, Nameplate RPM 1,050, No. of Speeds 3, Voltage 115V AC, Full Load Amps 5.0, 42Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz, Motor Service Factor 1, Ins. Class A, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Lead Length 24 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Flexible Arms, Motor Mounting Position Horizontal, Number of Shafts 1
