  6. Motor, Split Ph, 1/2 HP, 1725,115V, 56, TEAO

This item is Discontinued.

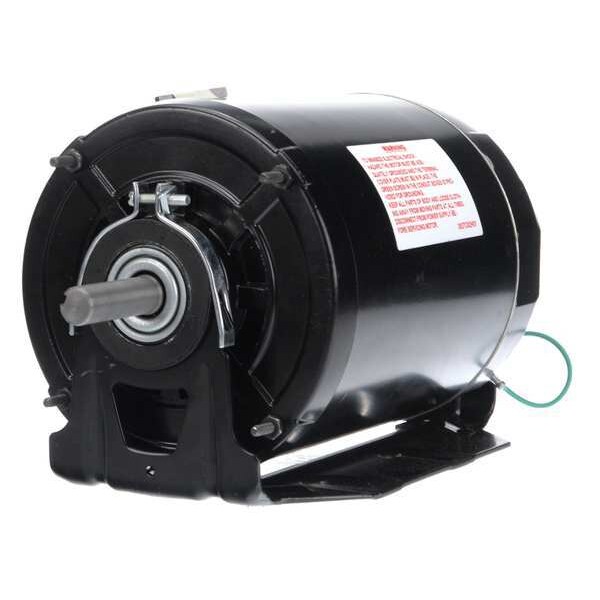

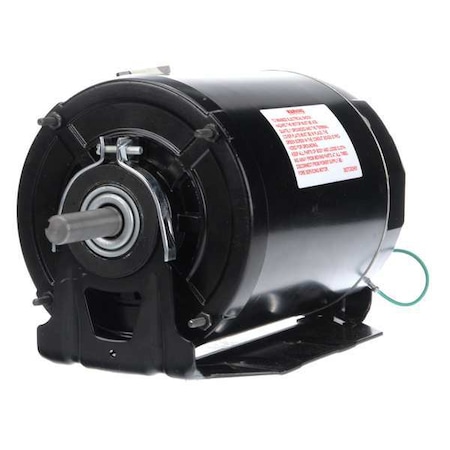

Century Motor, Split Ph, 1/2 HP, 1725,115V, 56, TEAO ARB2054L2

Motor, Split Ph, 1/2 HP, 1725,115V, 56, TEAO (Discontinued)

  • Mfr # ARB2054L2
  • Zoro # G2956825
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ARB2054L2
Zoro #
G2956825
UPC #
-
Country of Origin
Mexico

Dimensions

Resilient Ring Dia.
2 1/2 in
Stud Size
#10-32
Length Less Shaft
9 13/16 in
Manufacturers Warranty Length
1 yr
Overall Length
11 13/16 in
Shaft Dia.
5/8 in
Body Dia.
6 1/2 in
Mounting Stud Length
5/8 in
Shaft Length
2 in

Details

Voltage
115
Item
Direct Drive Blower Motor
Standards
UL Recognized, CSA Certified
Motor Shaft Rotation
CW/CCW
Nameplate RPM
1725/1140
Motor Enclosure Design
Totally Enclosed Air-Over
Ins. Class
B
Capacitor Required
No
Duty
Continuous
Phase
1
HP
1/2, 1/4
Ring to Ring Center
9 5/16 in
Motor Service Factor
1.00
Includes
Resilient Base
Motor Shaft Design
Keyed
Motor Application
HVAC/R
Max. Ambient Temp.
40 Degrees C
Motor Design
Split-Phase
Mounting Stud Location
Shaft End
Frame
56
Voltage Compatibility
115, 120, 115/208-230, 115/230, 120/240
Full Load Amps
8.2/5.3
Motor Bearings
Ball
RPM Range
1701-1800
Application
Blowers, Fans and Air Circulators
Hz
60
Mounting Stud Pattern
4 1/8 in x 4 1/8 in
Motor Sub Application
Direct Drive Fan/Blower
Motor Mounting Type
Cradle Base
Motor Mounting Position
Horizontal
Motor Thermal Protection
None
No. of Speeds
1

Description

Direct Drive Blower Motor, Split-Phase Motor Design, Totally Enclosed Air-Over Motor Enclosure Design, 1/2, 1/4 HP, 1725/1140 Nameplate RPM, Voltage 115, 8.2/5.3 Full Load Amps, 60 Hz, 1 Phase, 56 Frame, Motor Service Factor 1.00, Max. Ambient Temp. 40 Degrees C, Ins. Class B, Duty Continuous, No. of Speeds 1, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Motor Bearings Ball, Motor Thermal Protection None, Motor Shaft Rotation CW/CCW, Length Less Shaft 9 13/16 in
