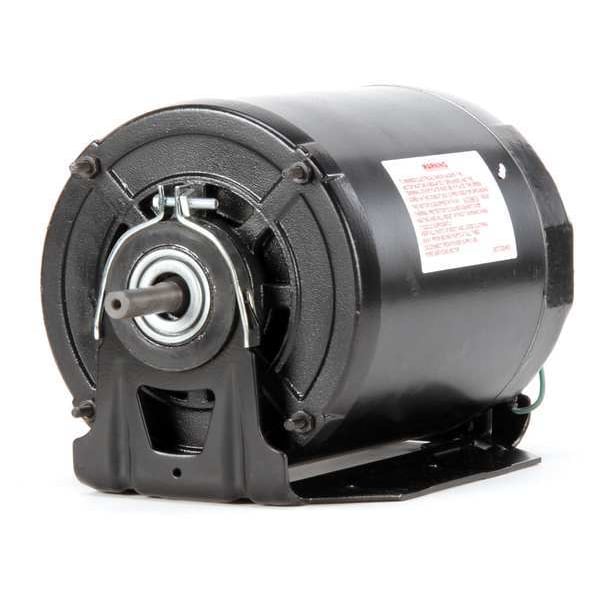

Motor, Split Ph, 1/3 HP, 1725, 115V, 56Z, TEAO

CENTURY| Zoro #: G0949487| Mfr #: ARB2034L1

$216.43 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0949487 Mfr #: ARB2034L1
Application: Blowers, Fans and Air CirculatorsItem: Direct Drive Blower Motor
Motor Design: Split-PhaseDuty: Continuous
Ins. Class: BPhase: 1
Motor Sub Application: Direct Drive Fan/BlowerMax. Ambient Temp.: 40 Degrees C
Motor Enclosure Design: Totally Enclosed Air-OverMotor Application: HVAC/R
Motor Mounting Type: Cradle BaseMotor Shaft Rotation: CW/CCW
Capacitor Required: NoVoltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Includes: 5/8" Dia. Shaft AdapterOverall Length: 11"
Ring to Ring Center: 8-7/8"Nameplate RPM: 1725/1140
Length Less Shaft: 9-3/8"Mounting Stud Pattern: 4-1/8" x 4-1/8"
Shaft Dia.: 1/2"HP: 1/3, 1/9
Mounting Stud Location: Shaft EndStud Size: #10-32
Full Load Amps: 5.5/4.0Motor Service Factor: 1.00
Body Dia.: 6-1/2"Motor Bearings: Ball
Bolt Circle Dia.: 5-13/16"Motor Shaft Design: Flat
Frame: 56ZMotor Thermal Protection: Auto
Standards: CSA certifiedMotor Mounting Position: Horizontal
Voltage: 115Mounting Stud Length: 1/2"
No. of Speeds: 2Shaft Length: 1-5/8"
Manufacturers Warranty Length: 1 yr.Resilient Ring Dia.: 2-1/2"
Hz: 60Country of Origin (subject to change): Mexico

Product Description

Direct Drive Blower Motor, Split-Phase Motor Type, Totally Enclosed Air-Over Enclosure, 1/3, 1/9 HP, 1/9 HP @ Lower RPM, 1725/1140 Nameplate RPM, Voltage 115, 5.5 Full Load Amps, 60 Hz, 1 Phase, 56Z Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 2, Mounting Cradle Base, Shaft Orientation Horizontal, Bearings Ball, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 6-1/2 In., Length Less Shaft 9-3/8 In., Overall Length 11 In.
