  6. Mtr, PSC, 1/3 HP, 1100 RPM, 208-230V, 48Y, OAO

This item is Discontinued.

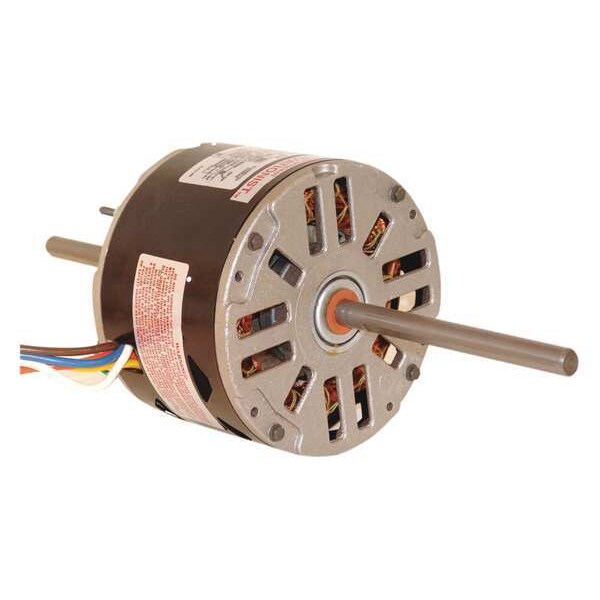

Century Mtr, PSC, 1/3 HP, 1100 RPM, 208-230V, 48Y, OAO OWR1036

Mtr, PSC, 1/3 HP, 1100 RPM, 208-230V, 48Y, OAO (Discontinued)

  • Mfr # OWR1036
  • Zoro # G0311114
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
OWR1036
Zoro #
G0311114
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Stud Size
#8-32
Overall Length
14 3/4 in
Length Less Shaft
3 15/16 in
Body Dia.
5.7 in
Shaft Length
5 1/4 in, 5 1/2 in

Details

Motor Design
Permanent Split Capacitor
HP
1/3
RPM Range
1,001-1,100
No. of Speeds
3
Voltage
208-230V AC
Motor Shaft Rotation
CCWLE
Frame
48Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Stud
Duty
Continuous
Full Load Amps
1.3-1.5 A
Ins. Class
B
Standards
CSA, UL Recognized
Nameplate RPM
1,100
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Motor Bearings
Sleeve
Max. Ambient Temp.
60 Degrees C
Item
OEM Replacement Motor
Number of Shafts
1
Application
Room A/C
Hz
60
Replacement For
5KCP39GG8158T
Voltage Compatibility
115/208-230V AC, 208-230V AC, 208-240V AC
Motor Application
OEM Replacement
Motor Thermal Protection
Auto
Capacitor Required
Yes
Motor Service Factor
1
Phase
Single
OEM Replacement Brand
Sears/Whirlpool
Motor Shaft Design
Flat
Ring to Ring Center
5 in
Usable @ 200V
No
Weight
12 lb
Motor Mounting Position
Horizontal
Motor Frame Material
Steel
Usable @ 208V
Yes
Rotation
CCWLE

Description

OEM Replacement Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 HP, Nameplate RPM 1,100, No. of Speeds 3, Voltage 208-230V AC, Full Load Amps 1.3-1.5 A, 48Y Frame, OEM Replacement Brand Sears/Whirlpool, Replacement For 5KCP39GG8158T, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud
