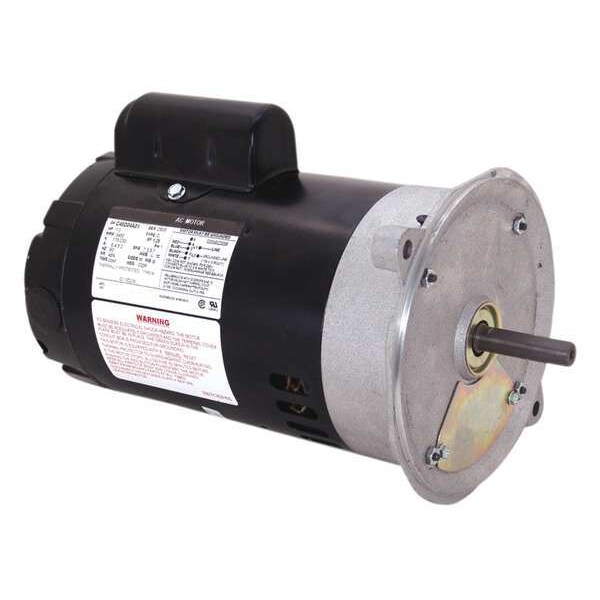

Oil BurnerMotor, 1/3 HP, 3450, 115/230v, 48N

CENTURY |Zoro #: G0552273|Mfr #: OL1032D

$233.00 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0552273 Mfr #: OL1032D
Voltage: 115/230Hz: 60
Motor Bearings: SleeveFrame: 48N
Motor Flange Type: Non-VentilatedMotor Shaft Rotation: CW/CCW
Includes: CapacitorStandards: UL Recognized (E46412/E25022), CSA Certified (LR43341)
Ambient Temperature: 40 Degrees CMotor Flange Material: Aluminum
Phase: 1Ins. Class: B
Motor Mounting Type: FaceShaft Length: 1-7/8"
Max. Ambient Temp.: 40 Degrees CMotor Sub Application: Oil Burner
Motor Application: HVAC/RMotor Enclosure Design: Open Dripproof
Item: Oil Burner MotorNameplate RPM: 3450
Motor Thermal Protection: ManualMotor Design: Capacitor-Start
Voltage Compatibility: 115, 120, 230, 240, 115/230, 120/240Shaft Dia.: 1/2"
Motor Service Factor: 1.35HP: 1/3
Full Load Amps: 4.2/2.1Country of Origin (subject to change): Mexico

Product Description

Oil Burner Motor, Capacitor-Start, Open Dripproof, 1/3 HP, Nameplate RPM 3450, 48N Frame, Voltage 115/230, 60 Hz, 1 Phase, Full Load Amps 4.2/2.1, Face Motor Mounting Type, Manual Motor Thermal Protection, Ins. Class B, Motor Service Factor 1.35, Sleeve Motor Bearings, Ambient Temperature 40 Degrees C, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Shaft Dia. 1/2 In., Shaft Length 1-7/8 In., Motor Flange Material Aluminum, Motor Flange Type Non-Ventilated, 3001-3600
