This item is Discontinued.

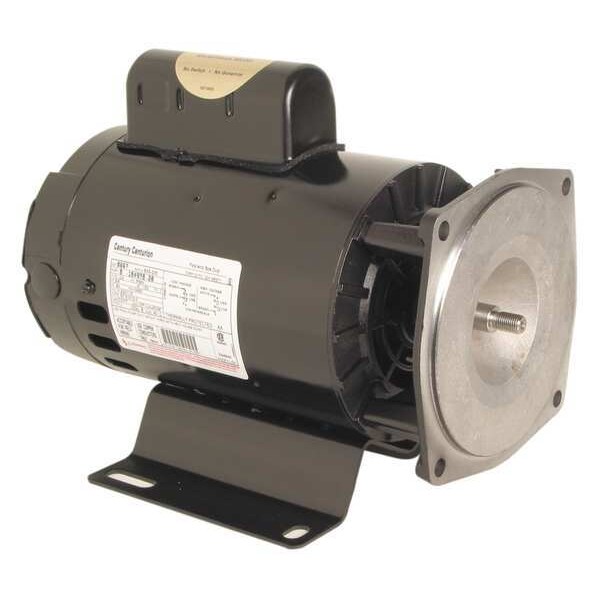

Century Pool Pump Motor, Permanent Split Capacitor, 3/4 HP, 56Y Frame, 3,450 Nameplate RPM B667

Pool Pump Motor, Permanent Split Capacitor, 3/4 HP, 56Y Frame, 3,450 Nameplate RPM (Discontinued)

  • Mfr # B667
  • Zoro # G4479054
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B667
Zoro #
G4479054
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
1/2 in
Shaft Dia.
5/8 in
Bolt Circle Dia.
7 3/16 in
Length Less Shaft
12 9/16 in
Overall Length
13 in
Height
10 1/2 in
Shaft Dia. (In.)
5/8

Details

Item
Pool Pump Motor
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
3/4
Motor Service Factor
1.5
RPM Range
3,001-3,600
Nameplate RPM
3,450
Frame
56Y
Motor Shaft Rotation
CCWSE
Voltage
115/230V AC
Phase
Single
Full Load Amps
12.8/6.4
Motor Mounting Type
Rigid Base
Ins. Class
B
Shaft
Threaded 7/16-20 UNF-2A RH
Motor Thermal Protection
Auto
Motor Application
Pump
Motor Efficiency Group
Standard Efficient
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Shaft Material
303 Stainless Steel
Standards
CSA, UL
Motor Sub Application
Pool and Spa Pump
Motor Flange Material
Aluminum
Finish
Black
Ambient Temperature
40 Degrees C
Motor Bearings
Ball
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Motor Shaft Design
Threaded
Weight
26 lb
Motor Mounting Position
Horizontal
No. of Speeds
1
Max. SF Amps
12.0
Duty Cycle
Continuous
Usable @ 200V
No
Usable @ 208V
No
Motor Frame Material
Steel
Conduit Box Position
F3
Application
Pool/Spa Motor

Description

Pool Pump Motor, Bolt Circle Dia. 7 3/16 in, Conduit Box Position F3, Duty Cycle Continuous, Finish Black, Frame 56Y, Hz 60 Hz, Full Load Amps 12.8/6.4, Height 10 1/2 in, HP 3/4, Ins. Class B, Length Less Shaft 12 9/16 in, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 12.0, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
