  11. Pump Motor, Cap St, 7.5 HP, 3500,230V, 213JM
This item is Discontinued.

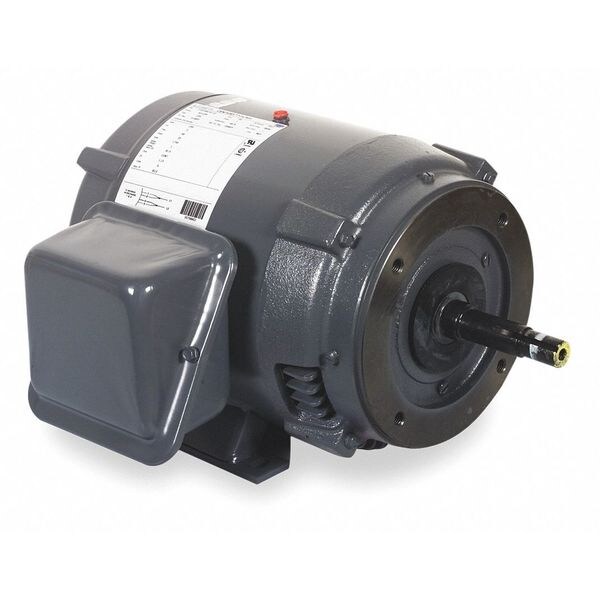

Century Pump Motor, Cap St, 7.5 HP, 3500,230V, 213JM P318

Pump Motor, Cap St, 7.5 HP, 3500,230V, 213JM (Discontinued)

  • Mfr # P318
  • Zoro # G0718925
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P318
Zoro #
G0718925
UPC #
786674029058
Country of Origin
Mexico

Dimensions

Shaft Dia.
7/8"
Overall Length
17-5/8"
Shaft Length
4-1/4"
Length Less Shaft
13-3/8"

Details

Item
Close-Coupled Pump Motor
HP
7-1/2
RPM Range
3001-3600
Nameplate RPM
3500
Voltage
230
Frame
213Jm
Motor Service Factor
1.15
Motor Sub Application
Close-Coupled Pump
Hz
60
Full Load Amps
39.0
Phase
1
Includes
External Slinger
Motor Bearings
Ball
Voltage Compatibility
230, 240, 115/230, 120/240
Frame Material
Rolled steel
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Rolled Steel
Standards
UL Recognized (E44549), CSA Certified (LR4642/EEV76942)
Duty
Continuous
Ins. Class
B
Nominal Efficiency
77.0%
Motor Application
Pump

Description

Close-Coupled Pump Motor, 7-1/2, 3500, 230, 213JM, Shaft Dia. 7/8 in, 1.15, 3001-3600, Voltage Compatibility 230, 240, 115/230, 120/240, Phase 1, Pump, Close-Coupled Pump, Continuous, 60, 39.0, External Slinger, Ins. Class B, Length Less Shaft 13 3/8 in, 40 Degrees C, Ball, Motor Frame Material Rolled Steel, Nominal Efficiency 77.0 Percent, Overall Length 17 5/8 in, Shaft Length 4 1/4 in, UL Recognized (E44549), CSA Certified (LR4642/EEV76942)
