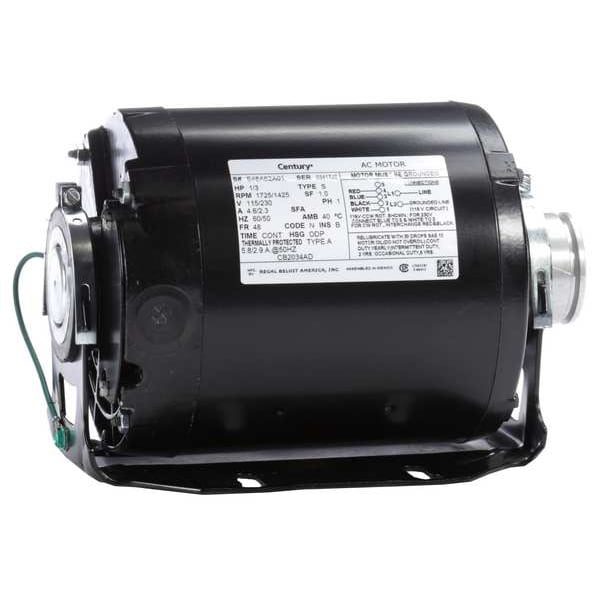

Century Pump Motor, Split Phase Design CB2034AD - main

Pump Motor, Split Phase Design

  • Mfr # CB2034AD

  • Zoro # G700905770

product price: $215.99
/ea
Free Shipping & Returns

Key Features

Motor Mounting Type
Cradle Base
Ins. Class
B
Hz
60/50
Full Load Amps @ 50Hz
4.6/2.3
RPM Range
1,701-1,800
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CB2034AD
Zoro #
G700905770
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
8 9/16 in
Height
5 13/16 in
Shaft Length
1/4 in
Shaft Dia.
5/8 in
Body Dia.
5.7 in
Length Less Shaft
8 5/16 in

Details

Motor Mounting Type
Cradle Base
Ins. Class
B
Hz
60/50
Full Load Amps @ 50Hz
4.6/2.3
RPM Range
1,701-1,800
Motor Bearings
Sleeve
Voltage
115/230V AC
Motor Enclosure Design
Open
Phase
Single
Frame
48
Voltage @ 50Hz
115/230
Usable @ 200V
No
Full Load Amps
4.6/2.3
Motor Sub Application
Carbonator Pump
Usable @ 208V
No
Item
Carbonator Pump Motor
Duty Cycle
Continuous
Motor Design
Split-Phase
HP
1/3
Max. Ambient Temp.
104 Degrees F
Weight
15 lb
Motor Frame Material
Steel
Motor Application
Pump
RPM @ 50Hz
1,725/1,425
Service Factor @ 50Hz
1
Motor Thermal Protection
Auto
Standards
CSA Certified
HP @ 50Hz
1/3
Motor Shaft Rotation
CW/CCW
Nameplate RPM
1,725/1,425
No. of Speeds
2
Motor Service Factor
1
NEMA Design
None
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC

Description

Carbonator Pump Motor, Body Dia. 5.7 in, Duty Cycle Continuous, Frame 48, Hz 60/50, Full Load Amps 4.6/2.3, Full Load Amps @ 50Hz 4.6/2.3, Height 5 13/16 in, HP 1/3, HP @ 50Hz 1/3, Ins. Class B, Length Less Shaft 8 5/16 in, Max. Ambient Temp. 104 Degrees F, Motor Application Pump, Motor Bearings Sleeve, Motor Design Split-Phase, Motor Efficiency Group Standard Efficient, Motor Frame Material Steel
