Century

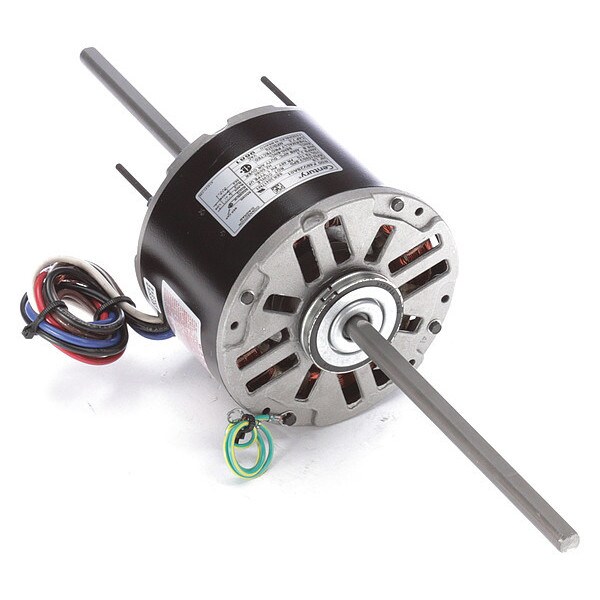

Room Air Cond Mt, OAO, 1550 RPM (Discontinued)
Mfr # 9681
Zoro # G1163145
Free Shipping & Returns
This Product is Discontinued
Key Features
- Motor Design Permanent Split Capacitor
- HP 1/8
- RPM Range 1,501-1,600
- No. of Speeds 3
- Voltage 115V AC
- Brand Century
- MFR #9681
- Zoro #G1163145
- Country of OriginMexico
- Category Room Air Conditioner Motors
Dimensions
Shaft Dia. | 1/2 in |
Stud Size | #8-32 x 1-5/8 in |
Lead Length | 14 in |
Shaft Length | 7 1/2 in |
Resilient Ring Dia. | 2 1/4 in |
Body Dia. | 5 5/8 in |
Length Less Shaft | 4 3/8 in |
Bolt Circle Dia. | 5 3/16 in |
Overall Length | 19 3/8 in |
Details
Motor Design | Permanent Split Capacitor |
HP | 1/8 |
RPM Range | 1,501-1,600 |
No. of Speeds | 3 |
Voltage | 115V AC |
Motor Shaft Rotation | CCWLE |
Frame | 48Y |
Motor Enclosure Design | Open Air-Over |
Motor Mounting Type | Ring/Stud |
Motor Service Factor | 1 |
Phase | Single |
Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
Nameplate RPM | 1,550 |
Capacitor Required | 2MDV6 |
Duty | Continuous |
Ins. Class | B |
Motor Bearings | Sleeve |
Max. Ambient Temp. | 40 Degrees C |
Full Load Amps | 2.03 A |
Motor Application | HVAC/R |
Item | Room Air Conditioner Motor |
Hz | 50 Hz |
Motor Sub Application | Room Air Conditioner |
Motor Shaft Design | Flat |
Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
Standards | CSA Certified, UL Recognized |
Motor Thermal Protection | Auto |
Full Load Amps @ 50Hz | 2.3 A |
Number of Shafts | 2 |
RPM @ 50Hz | 1,550 RPM |
Usable @ 208V | No |
Stud Quantity | 4 |
Usable @ 200V | No |
Motor Mounting Position | Horizontal |
Includes | Resilient Mounting Ring |
Service Factor @ 50Hz | 1 |
Voltage @ 50Hz | 115V AC |
Motor Frame Material | Steel |
HP @ 50Hz | 1/8 |
Weight | 11 lb |
Mounting Holes | 4 |
Application | Room Air Conditioners, evaporative cooloers, remote fan coils, and other shaft mounted fan and blower applications |
Mounting | Stud |
Number of Speeds | 3 |
Description
Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/8 HP, Nameplate RPM 1,550, No. of Speeds 3, Voltage 115V AC, Full Load Amps 2.03 A, 48Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 50 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Lead Length 14 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring/Stud, Motor Mounting Position Horizontal, Number of Shafts 2
