Century

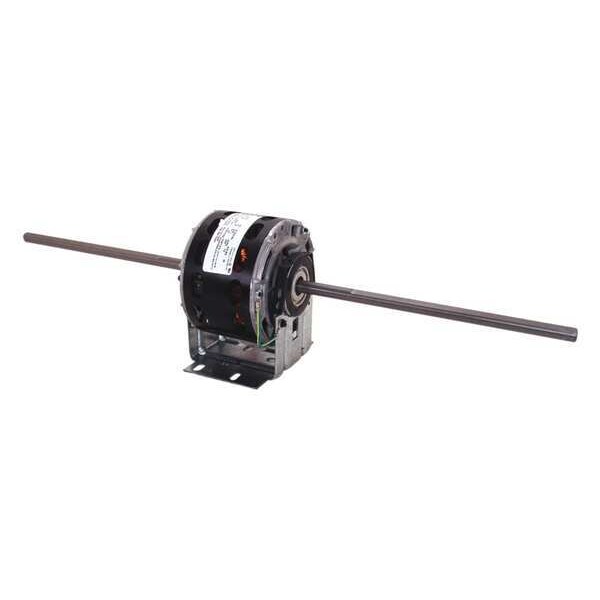

Room Air Cond Mtr, PSC, OAO, 1075 RPM

original price: $165.33
3% off
new price: $158.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Permanent Split Capacitor
  • HP 1/15, 1/20, 1/25, 1/35
  • RPM Range 1,001-1,100
  • No. of Speeds 4
  • Voltage 115V AC
See all product information

Product Information

Dimensions

Shaft Dia. 1/2 in
Length Less Shaft 4 3/4 in
Bolt Circle Dia. 4 5/8 in
Resilient Ring Dia. 2 1/2 in
Stud Size #8-32 x 1-5/8 in
Shaft Length 11 in
Lead Length 24 in
Body Dia. 5 in
Overall Length 25 3/4 in

Details

Motor Design Permanent Split Capacitor
HP 1/15, 1/20, 1/25, 1/35
RPM Range 1,001-1,100
No. of Speeds 4
Voltage 115V AC
Motor Shaft Rotation CCWLE
Frame 42Y
Motor Enclosure Design Open Air-Over
Motor Mounting Type Cradle Base
Ring to Ring Center 4 1/4 in
Motor Bearings Sleeve
Full Load Amps 1.2, 0.8, 0.7, 0.6 A
Max. Ambient Temp. 40 Degrees C
Motor Application HVAC/R
Motor Sub Application Room Air Conditioner
Standards CSA Certified, UL Recognized
Hz 60 Hz
Phase Single
Motor Thermal Protection Auto
Ins. Class B
Motor Service Factor 1
Item Room Air Conditioner Motor
Duty Continuous
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Nameplate RPM 1,075
Capacitor Required 2MDV4
Mounting Holes 4
Motor Mounting Position Horizontal
Number of Shafts 2
Motor Frame Material Steel
Motor Shaft Design Flat
Weight 11 lb
Stud Quantity 4
Usable @ 208V No
Usable @ 200V No
Includes Resilient Base
Duty Cycle Continuous
Number of Speeds 4
Mounting Cradle Base
Application Room Air Conditioners And Through-The-Wall Units, Shaft-Mounted Fan And Blower

Description

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/15, 1/20, 1/25, 1/35 HP, Nameplate RPM 1,075, No. of Speeds 4, Voltage 115V AC, Full Load Amps 1.2, 0.8, 0.7, 0.6 A, 42Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 24 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Cradle Base
