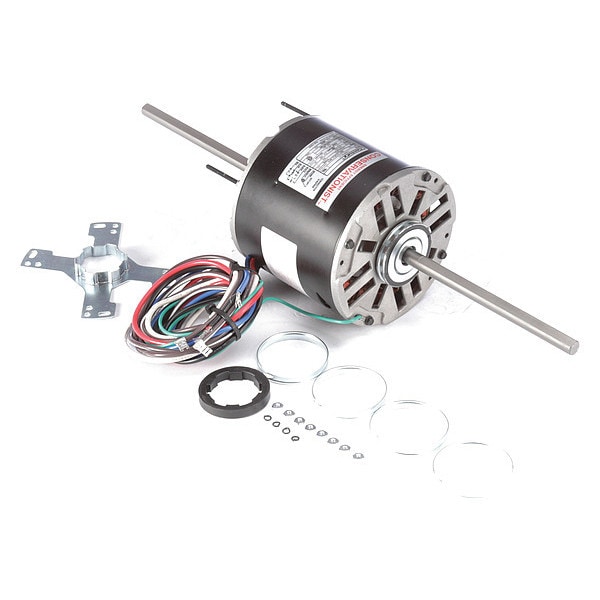

Room Air Cond Mtr, PSC, OAO, 1075 RPM
Mfr # RA1056
Zoro # G2661452
product price:Â $203.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
HP
1/2
RPM Range
1,001-1,100
No. of Speeds
3
Voltage
208-230V AC
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
RA1056
Zoro #
G2661452
UPC #
-
Country of Origin
India
Dimensions
Shaft Dia.
1/2 in
Stud Size
#8-32 x 1-5/8 in
Resilient Ring Dia.
2 1/4 in
Length Less Shaft
5 5/8 in
Shaft Length
7 19/32 in
Lead Length
35 in
Bolt Circle Dia.
5 1/8 in
Body Dia.
5 5/8 in
Overall Length
20 in
Shaft Diameter
1/2 in
Frame Size
48Y
Bolt Circle Diameter
5 1/8 in
Mounting Stud Thread Size
#8-32
Body Diameter
5.6 in
Resilient Ring Diameter
2 1/4 in
Description
Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 208-230V AC, 2.07 A Full Load Amps, 48Y Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Semi Enclosed Air-Over
