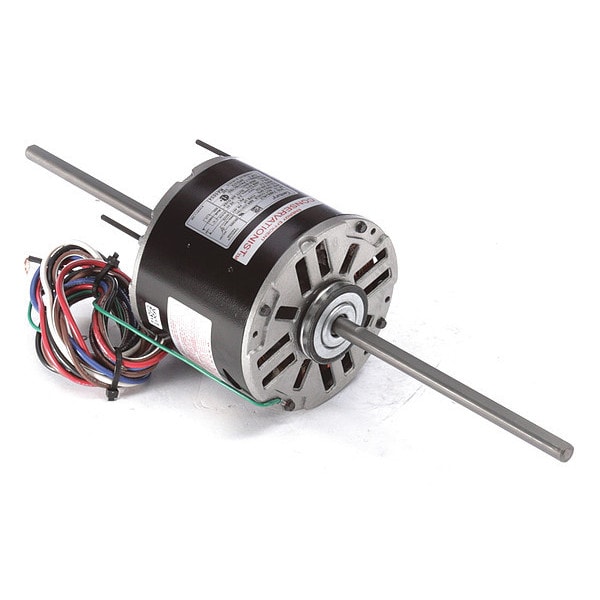

Room Air Cond Mtr, PSC, OAO, 1625 RPM
Mfr # RA1034
Zoro # G2843906
product price:Â
$
245.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
HP
1/3
RPM Range
1,601-1,700
No. of Speeds
3
Voltage
208-230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- RA1034
- Zoro #
- G2843906
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Shaft Dia.
- 1/2 in
- Stud Size
- #8-32 x 1-5/8 in
- Shaft Length
- 7 13/32 in
- Length Less Shaft
- 5 1/2 in
- Resilient Ring Dia.
- 2 1/4 in
- Body Dia.
- 5 5/8 in
- Lead Length
- 35 in
- Bolt Circle Dia.
- 5 1/8 in
- Overall Length
- 20 in
- Bolt Circle Diameter
- 5 1/8 in
- Resilient Ring Diameter
- 2 1/4 in
- Mounting Stud Thread Size
- #8-32
- Body Diameter
- 5.6 in
- Shaft Diameter
- 1/2 in
- Frame Size
- 48Y
- Wire Rope Length
- 20 in
- Length
- 20 in
Description
Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 3, Voltage 208-230V AC, 2.0 A Full Load Amps, 48Y Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Duty Cycle Continuous, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Semi Enclosed Air-Over
