  11. Room Air Cond Mtr, PSC, OAO, 1625 RPM
Shop All Room Air Conditioner Motors
Century

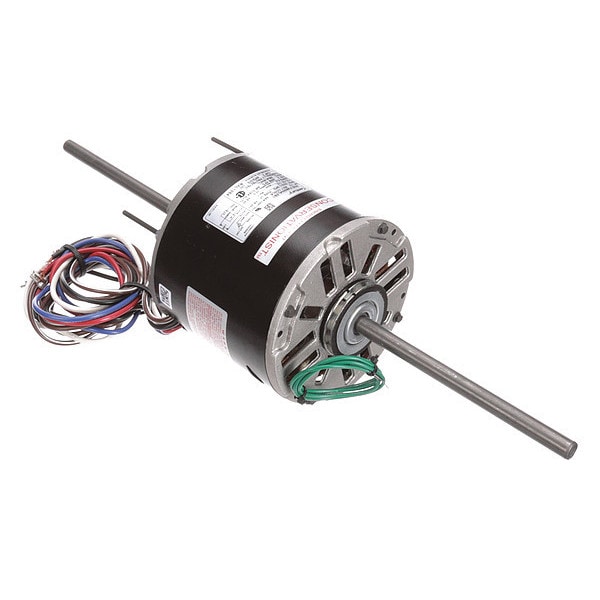

Room Air Cond Mtr, PSC, OAO, 1625 RPM

product price: $267.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Permanent Split Capacitor
  • HP 1/2
  • RPM Range 1,601-1,700
  • No. of Speeds 3
  • Voltage 115V AC
See all product information

Product Information

Dimensions

Shaft Dia. 1/2 in
Body Dia. 5 5/8 in
Bolt Circle Dia. 5 1/8 in
Lead Length 35 in
Length Less Shaft 5 5/8 in
Shaft Length 7 5/8 in
Stud Size #8-32 x 1-5/8 in
Resilient Ring Dia. 2 1/4 in
Overall Length 20 in

Details

Motor Design Permanent Split Capacitor
HP 1/2
RPM Range 1,601-1,700
No. of Speeds 3
Voltage 115V AC
Motor Shaft Rotation CCWLE
Frame 48Y
Motor Enclosure Design Open Air-Over
Motor Mounting Type Ring/Stud
Duty Continuous
Standards CSA Certified, UL Recognized
Motor Application HVAC/R
Motor Bearings Sleeve
Motor Thermal Protection Auto
Item Room Air Conditioner Motor
Full Load Amps 6 A
Capacitor Required 2MDV4
Hz 60 Hz
Ins. Class A
Max. Ambient Temp. 40 Degrees C
Motor Sub Application Room Air Conditioner
Phase Single
Nameplate RPM 1,625
Motor Service Factor 1
Mounting Stud Pattern 3-5/8 in x 3-5/8 in
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Usable @ 208V No
Duty Cycle Continuous
Includes Extended Studs, Permanent Split Capacitor, Resilient Rings
Usable @ 200V No
Mounting Holes (4) #8-32
Weight 16 lb
Motor Shaft Design Flat
Motor Mounting Position Horizontal
Motor Frame Material Steel
Stud Quantity 4
Number of Shafts 2
Mounting Stud
Number of Speeds 3
Application Room Air Conditioners And Through-The-Wall Units, Shaft-Mounted Fan And Blower

Description

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,625, No. of Speeds 3, Voltage 115V AC, Full Load Amps 6 A, 48Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class A, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 35 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring/Stud, Motor Mounting Position Horizontal
