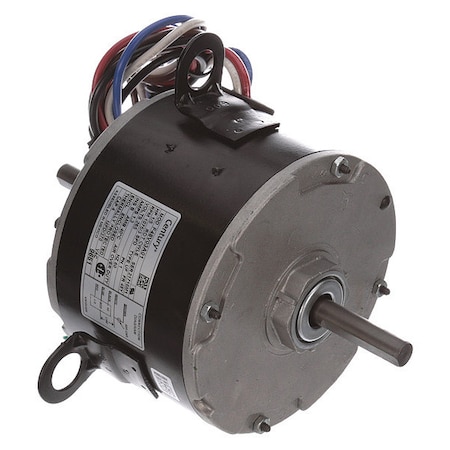

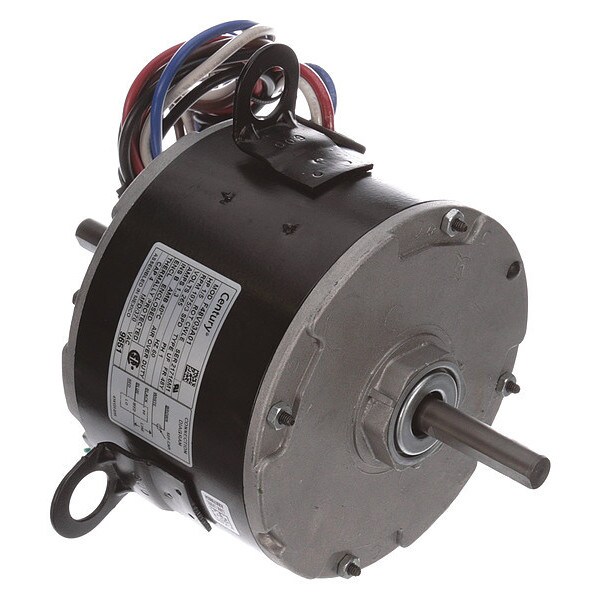

Room Air Cond Mtr, PSC, TEAO, 1075 RPM

CENTURY| Zoro #: G0296134| Mfr #: 9651

$166.40 /ea

This item ships free. DetailsStandard ground shipping
Details:
RPM Range: 1001-1100
Length Less Shaft: 4-7/8"
Motor Design: Permanent Split Capacitor
Save 15%. Sign up for Z-mail.

Technical Specifications

Zoro #: G0296134 Mfr #: 9651
RPM Range: 1001-1100Length Less Shaft: 4-7/8"
Motor Design: Permanent Split CapacitorMotor Thermal Protection: Auto
Duty: ContinuousMotor Shaft Design: Flat
Phase: 1Max. Ambient Temp.: 40 Degrees C
Motor Shaft Rotation: CWLEVoltage Compatibility: 265, 277, 208-230/277, 277/230
Shaft Length: 1-15/16"Motor Enclosure Design: Totally Enclosed Air-Over
No. of Speeds: 3Standards: UL, CSA
Hz: 60Shaft Dia.: 1/2"
Item: Room Air Conditioner MotorMotor Sub Application: Room Air Conditioner
HP: 1/5Voltage: 265
Motor Service Factor: 1.00Body Dia.: 5-5/8"
Full Load Amps: 1.3Motor Application: HVAC/R
Motor Bearings: SleeveBolt Circle Dia.: 7"
Nameplate RPM: 1075Frame: 48Y
Capacitor Required: 2MDV3Lead Length: 24"
Motor Mounting Type: LugIns. Class: B
Country of Origin (subject to change): Mexico

Product Description

Room Air Conditioner Motor, Permanent Split Capacitor, Totally Enclosed Air-Over, Continuous, 1/5 HP, 1075 Nameplate RPM, Voltage 265, 48Y Frame, Service Factor 1.0, 60 Hz, Full Load Amps 1.3, Thermal Protection Auto, Insulation Class B, Max. Ambient Temp. 40 Degrees C, Number of Speeds 3, CWLE Rotation, 1 Phase, Lug Mounting, Sleeve Bearings, Body Dia. 5-5/8 In., Length Less Shaft 4-7/8 In., Shaft Type Flat, Shaft Dia. 1/2 In., Shaft Length 1-15/16 In., Bolt Circle Dia. 7 In.
