Product Information
MFR #
9670
Zoro #
G2873841
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1/2 in
Shaft Length
10 1/2 in
Lead Length
52 in
Length Less Shaft
3 3/4 in
Body Dia.
5 in
Bolt Circle Dia.
4 5/8 in
Resilient Ring Dia.
2 1/4 in
Stud Size
#8-32 x 1 1/2 in
Description

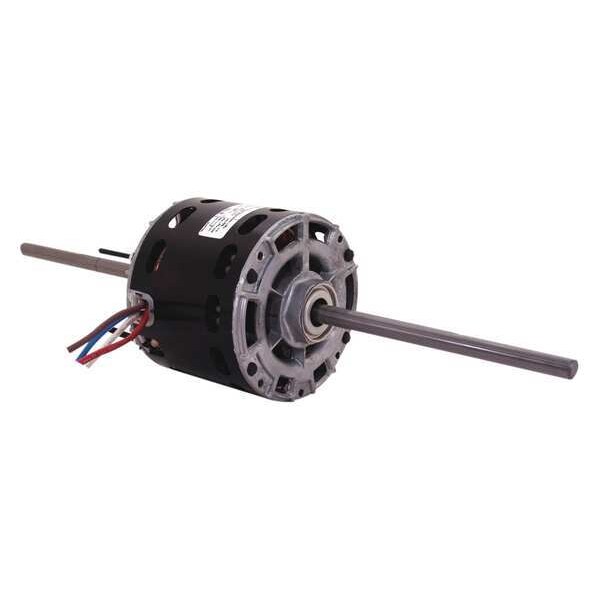

Room Air Conditioner Motor, Shaded Pole, 1/15 HP, RPM Range 1001-1100, No. of Speeds 3, Voltage 208-230, CCWLE Motor Shaft Rotation, 42Y Frame, Open Air-Over, Stud Motor Mounting Type, Shaft Dia. 1/2 in, Shaft Length 10 1/2 in, Motor Thermal Protection Auto, 1050 Nameplate RPM, 1 Phase, Sleeve Motor Bearings, Capacitor Required No, Ins. Class A, Mounting Stud Pattern 2 5/16 in x 4 in, Motor Service Factor 1.00, Continuous, 60/50 Hz, Full Load Amps 1.3, Max. Ambient Temp. 40 Degrees C
