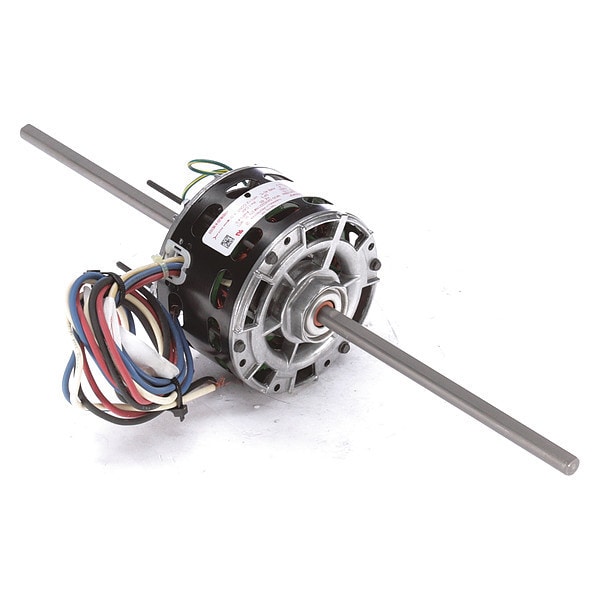

Room Air Cond Mtr, Shad Pol, OAO, 1050 RPM

  • Zoro #: G2615961
  • Mfr #: 9672

$159.37

Details
  • Motor Design: Shaded Pole
  • Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
  • Motor Bearings: Sleeve
See full product details
This item ships free.
Shipping & Returns
  • and get 15% off your first order

Get 15% off your first order when you sign up for Zmail.

Century #9672 Specifications

  • Zoro #: G2615961
  • Mfr #: 9672
Motor Design: Shaded Pole Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Motor Bearings: Sleeve Phase: 1
Max. Ambient Temp.: 40 Degrees C Ring to Ring Center: 4-1/16"
Hz: 60 Standards: UL, CSA
Duty: Continuous Capacitor Required: No
Frame: 42Y HP: 1/12
Motor Mounting Type: Stud Resilient Ring Dia.: 2-1/4"
RPM Range: 1001-1100 Motor Sub Application: Room Air Conditioner
Ins. Class: A Motor Shaft Design: Flat
Motor Application: HVAC/R Motor Service Factor: 1.00
Full Load Amps: 4.0 Nameplate RPM: 1050
Bolt Circle Dia.: 4-5/8" Mounting Stud Pattern: 2-5/16" x 4"
No. of Speeds: 3 Body Dia.: 5"
Shaft Dia.: 1/2" Item: Room Air Conditioner Motor
Motor Enclosure Design: Open Air-Over Stud Size: #8-32 x 1-1/2"
Shaft Length: 8-1/4" and 8" Voltage: 115
Lead Length: 38" Length Less Shaft: 3-3/4"
Motor Thermal Protection: Auto Motor Shaft Rotation: CCWLE
Country of Origin (subject to change): Mexico

Description

Room air conditioner motors come in two common variants – shaded pole room air conditioner motors and permanent split capacitator room conditioner motors, the latter of which offers higher efficiency, performance and starting torque. Here is some additional information about Century Room Air Conditioner Motor. Voltage: 115, Hp: 1/12, Nameplate Rpm: 1050.
