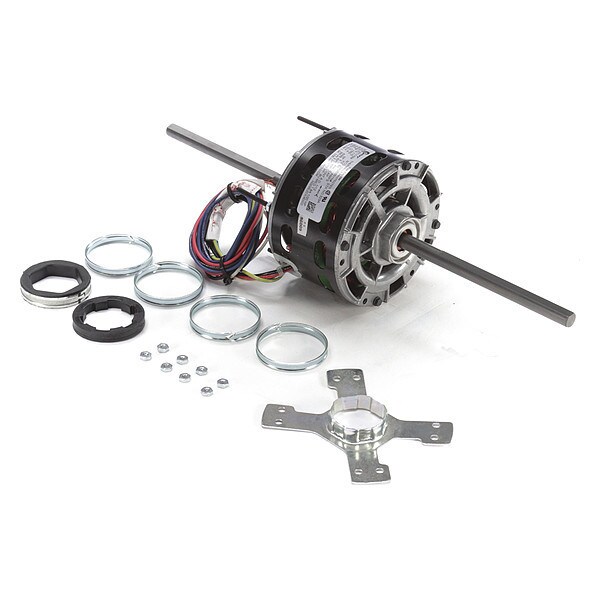

Room Air Cond Mtr, Shad Pol, OAO, 1550 RPM

CENTURY| Zoro #: G1276091| Mfr #: 323A

$123.40 /ea

This item ships free. Details.Standard ground shipping.
Details:
Motor Design: Shaded Pole
Stud Size: #8-32 x 1-1/2"
Motor Application: HVAC/R
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G1276091 Mfr #: 323A
Motor Design: Shaded PoleStud Size: #8-32 x 1-1/2"
Motor Application: HVAC/RVoltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Motor Shaft Rotation: CCWLEItem: Room Air Conditioner Motor
HP: 1/12Shaft Dia.: 1/2"
RPM Range: 1501-1600Bolt Circle Dia.: 4-5/8"
Standards: UL, CSAVoltage: 115
Hz: 60Motor Enclosure Design: Open Air-Over
Nameplate RPM: 1550Length Less Shaft: 3-3/4"
Body Dia.: 5"Motor Sub Application: Room Air Conditioner
Ins. Class: ARing to Ring Center: 3-3/4 to 4-3/4"
Motor Shaft Design: FlatDuty: Continuous
Max. Ambient Temp.: 40 Degrees CMotor Service Factor: 1.00
Mounting Stud Pattern: 3-1/4" x 3-1/4"Lead Length: 48"
Phase: 1Motor Bearings: Sleeve
Frame: 42YNo. of Speeds: 3
Capacitor Required: NoShaft Length: 6-7/8" and 6-7/16"
Full Load Amps: 3.2Motor Mounting Type: Stud
Motor Thermal Protection: AutoResilient Ring Dia.: 2-1/4"
Country of Origin (subject to change): Mexico

Description

Room Air Conditioner Motor, Shaded Pole, Open Air-Over, Continuous, 1/12 HP, 1550 Nameplate RPM, Voltage 115, 42Y Frame, Motor Service Factor 1.00, 60 Hz, Full Load Amps 3.2, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, No. of Speeds 3, CCWLE Motor Shaft Rotation, 1 Phase, Stud Motor Mounting Type, Sleeve Motor Bearings, Body Dia. 5 In., Length Less Shaft 3-3/4 In., Motor Shaft Design Flat, Shaft Dia. 1/2 In., Shaft Length 6-7/8 In. and 6-7/16 In.
