  6. Split-Phase Belt Drive Motor, 1/15, 1/3 HP, 56Z Frame, 115V AC Voltage, 1,725/850 Nameplate RPM

This item is Discontinued.

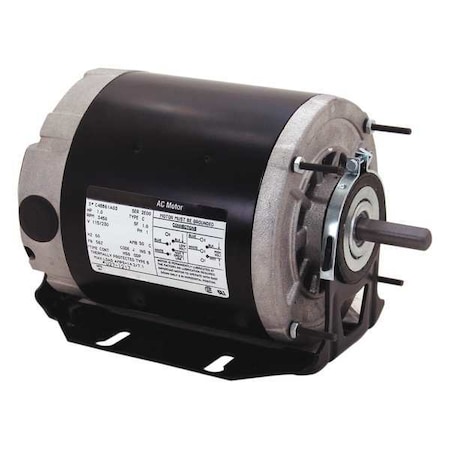

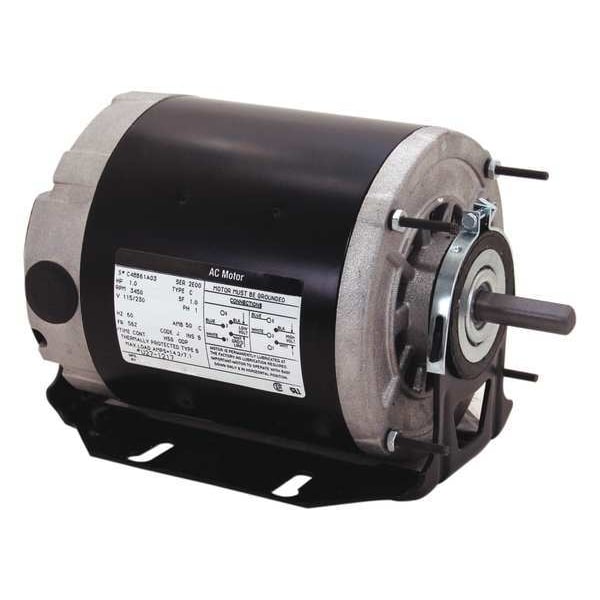

Century Split-Phase Belt Drive Motor, 1/15, 1/3 HP, 56Z Frame, 115V AC Voltage, 1,725/850 Nameplate RPM SGF2034V3

Split-Phase Belt Drive Motor, 1/15, 1/3 HP, 56Z Frame, 115V AC Voltage, 1,725/850 Nameplate RPM (Discontinued)

  • Mfr # SGF2034V3
  • Zoro # G1411846
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SGF2034V3
Zoro #
G1411846
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Overall Length
11 1/16 in
Shaft Length
1 15/16 in
Body Dia.
6 1/2 in
Resilient Ring Dia.
2 1/2 in
Length Less Shaft
9 1/8 in

Details

Item
Belt Drive Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/15, 1/3
No. of Speeds
2
RPM Range
1,701-1,800
Nameplate RPM
1,725/850
Voltage
115V AC
Frame
56Z
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Duty
Continuous
Nominal Efficiency
64 %
Standards
CSA, UL Recognized
Hz
60 Hz
Motor Shaft Rotation
CW/CCW
Full Load Amps
5.2/3.0 A
Ring to Ring Center
8 11/16 in
Motor Bearings
Ball
Footnotes
26, 307
Includes
5/8" dia. Shaft Bushing
Frame Material
Rolled steel
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Ins. Class
B
Mounting Stud Pattern
4 1/8 in x 4 1/8 in
Max. Ambient Temp.
104 Degrees F
Includes Shaft Bushing
Yes
Usable @ 200V
No
Usable @ 208V
No
Weight
44 lb
Duty Cycle
Continuous

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/15 hp, 1/3 hp HP, Nameplate RPM 1,725/850, No. of Speeds 2, Voltage 115V AC, 5.2/3.0 A Full Load Amps, 56Z Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
