Century

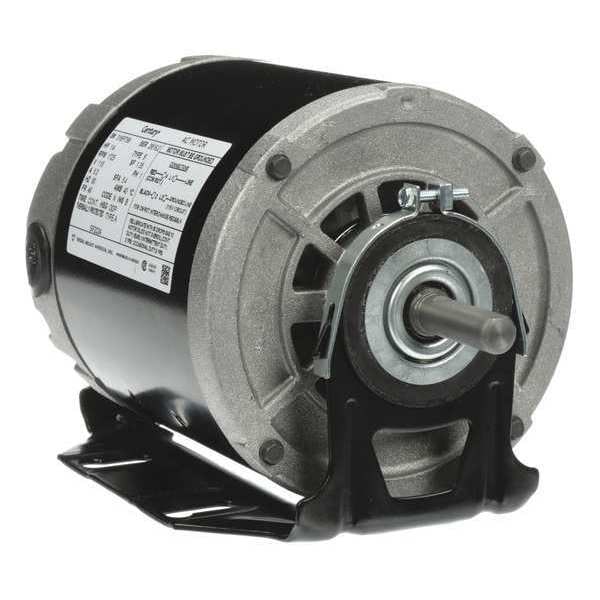

Split-Phase Belt Drive Motor, 1/4 HP, 48 Frame, 115V AC Voltage, 1,725 Nameplate RPM

Century Split-Phase Belt Drive Motor,  1/4 HP,  48 Frame,  115V AC Voltage,  1,725 Nameplate RPM GF2024
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$122.95
  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Open Dripproof
See full product details
This item ships free.
Total: $122.95

Century #GF2024 Specifications

  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Open Dripproof
  • HP: 1/4
  • No. of Speeds: 1
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725
  • Voltage: 115V AC
  • Frame: 48
  • Motor Mounting Type: Cradle Base
  • Shaft Dia.: 5/8 in
  • Motor Thermal Protection: Auto
  • Motor Service Factor: 1.35
  • Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Phase: Single
  • Motor Application: HVAC/R
  • Motor Sub Application: Belt Drive Fan/Blower
  • Max. Ambient Temp.: 40 Degrees C
  • Overall Length: 8 7/8 in
  • Resilient Ring Dia.: 2 1/2 in
  • Duty: Continuous
  • Hz: 60
  • Standards: CSA
  • Length Less Shaft: 7 3/8 in
  • Motor Bearings: Sleeve
  • Frame Material: Rolled steel
  • Full Load Amps: 5.0
  • Motor Frame Material: Steel
  • Ring to Ring Center: 7 3/16 in
  • Motor Mounting Position: All Angle
  • Includes: 5/8 in dia Shaft Bushing
  • Nominal Efficiency: 54 %
  • Ins. Class: B
  • Motor Shaft Rotation: CW/CCW
  • Body Dia.: 5 5/8 in
  • Shaft Length: 1 1/2 in
  • Duty Cycle: Continuous
  • Includes Shaft Bushing: Yes
  • Usable @ 208V: No
  • Weight: 13 lb
  • Usable @ 200V: No
  • Country of Origin (subject to change): Mexico
Feedback Help us improve our product information

Description

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 5.0 Full Load Amps, 48 Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Steel
