  6. Split-Phase Belt Drive Motor, 1/6, 1/18 HP, 48Z Frame, 115V AC Voltage, 1,725/1,140 Nameplate RPM

This item is Discontinued.

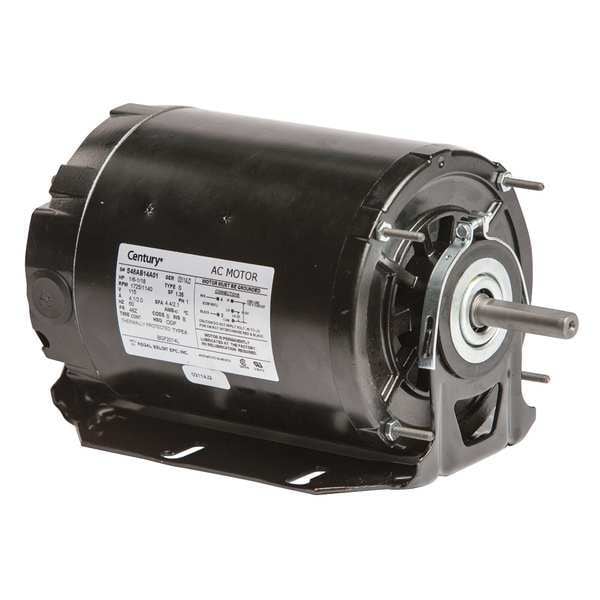

Century Split-Phase Belt Drive Motor, 1/6, 1/18 HP, 48Z Frame, 115V AC Voltage, 1,725/1,140 Nameplate RPM BGF2014L

Split-Phase Belt Drive Motor, 1/6, 1/18 HP, 48Z Frame, 115V AC Voltage, 1,725/1,140 Nameplate RPM (Discontinued)

  • Mfr # BGF2014L
  • Zoro # G2483503
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
BGF2014L
Zoro #
G2483503
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Length Less Shaft
8 3/4 in
Overall Length
10 11/16 in
Resilient Ring Dia.
2 1/2 in
Body Dia.
5 5/8 in
Shaft Length
1 15/16 in

Details

Item
Belt Drive Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/6, 1/18
No. of Speeds
2
RPM Range
1,701-1,800
Nameplate RPM
1,725/1,140
Voltage
115V AC
Frame
48Z
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.35
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Motor Shaft Rotation
CW/CCW
Standards
CSA, UL Recognized
Motor Mounting Position
All Angle
Motor Bearings
Ball
Full Load Amps
4.1/2.0 A
Frame Material
Rolled steel
Max. Ambient Temp.
104 Degrees F
Ins. Class
B
Duty
Continuous
Ring to Ring Center
8 1/4 in
Footnotes
26, 274
Motor Frame Material
Steel
Hz
60 Hz
Duty Cycle
Continuous
Usable @ 200V
No
Weight
16 lb
Usable @ 208V
No

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/18 hp, 1/6 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 4.1/2.0 A Full Load Amps, 48Z Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
