  11. Square Flange Pool Pump Motor, Permanent Split Capacitor, 3/4, 1/8 HP, 48Y Frame

This item is Discontinued.

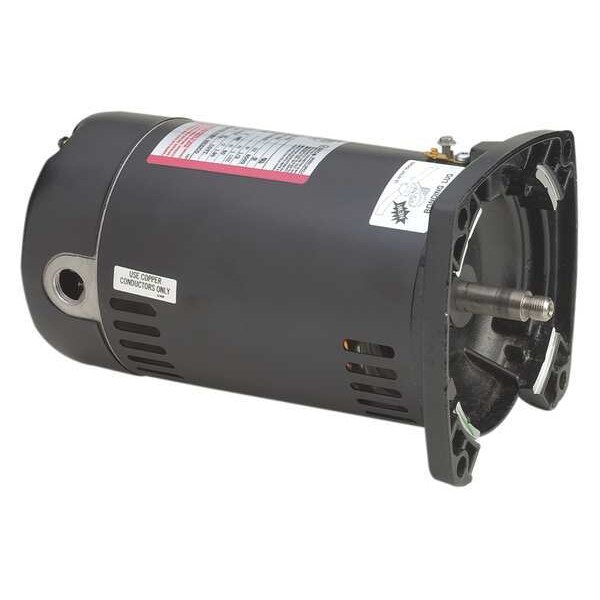

Century Square Flange Pool Pump Motor, Permanent Split Capacitor, 3/4, 1/8 HP, 48Y Frame SQS1072R

Square Flange Pool Pump Motor, Permanent Split Capacitor, 3/4, 1/8 HP, 48Y Frame (Discontinued)

  • Mfr # SQS1072R
  • Zoro # G2140731
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SQS1072R
Zoro #
G2140731
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8"

Details

Item
Square Flange Pool Pump Motor
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
3/4, 1/8
RPM Range
3001-3600
Motor Service Factor
1.60
Nameplate RPM
3450/1725
Frame
48Y
Motor Shaft Rotation
CCWSE
Phase
1
Voltage
230
Motor Mounting Type
Face
Full Load Amps
6.1/2.1
Motor Efficiency Group
Energy Efficient
Shaft Material
303 Stainless Steel
Voltage Compatibility
230, 240, 115/230, 120/240
Hz
60
Shaft
Threaded 1/2-20 UNF-2A RH
Max. Ambient Temp.
50 Degrees C
Design
Two Compartment
Ins. Class
B
Motor Thermal Protection
Auto
Motor Sub Application
Pool and Spa Pump
Motor Application
Pump

Description

Square Flange Pool Pump Motor, Permanent Split Capacitor Motor Design, Open Dripproof Motor Enclosure Design, 3/4, 1/8 HP, Nameplate RPM 3450/1725, 48Y Frame, Voltage 230, 60 Hz, 1 Phase, Full Load Amps 6.1/2.1, Face Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class B, Motor Service Factor 1.60, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CCWSE, Shaft Threaded 1/2-20 UNF-2A RH, Shaft Material 303 Stainless Steel, Shaft Dia. 5/8 in, Two Compartment
