Shop CENTURY

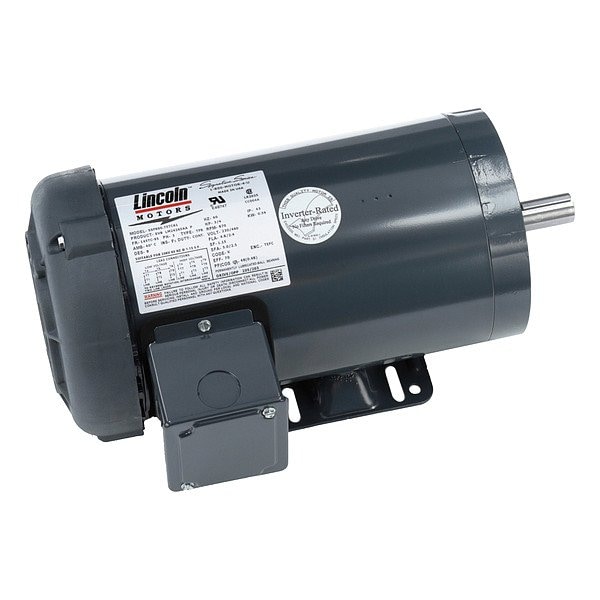

Three-Phase General Purpose Motor, 3/4 HP, 145TC Frame, 230/460V Voltage, 835 Nameplate RPM

  • Mfr # LM24265

  • Zoro # G311930994

product price:  $1,110.99
/ea
Free Shipping & Returns

Key Features

HP
3/4
Nameplate RPM
835
Voltage
230/460V
Motor Mounting Type
Rigid Base
Full Load Amps
2.1 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LM24265
Zoro #
G311930994
UPC #
691720060940
Country of Origin
Mexico

Dimensions

Length Less Shaft
12 1/8 in
Overall Length
14 3/8 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Shaft Diameter
7/8 in
Frame Size
145TC

Details

Item
General Purpose Motor
HP
3/4
Nameplate RPM
835
Voltage
230/460V
Motor Mounting Type
Rigid Base
Full Load Amps
2.1 A
Frame
145TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
835
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
Reversible
Voltage Compatibility
230/460 V
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
70 %
Standards
CSA Certified, UL Listed
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Motor Thermal Protection
None
NEMA Design
B
Usable @ 200V
Not Usable at 200V
Weight
52 lb
Efficiency Rating
Standard Efficiency (IE1)
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Application
General Purpose
Full Load Current @ 60 Hz
2.1 A
Product Type
General Purpose Motor
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.15
NEMA Design Class
B
Shaft Design
Keyed
Number of Speeds
1
Insulation Class
F
Frame Material
Steel
Mounting Position
Horizontal
Motor Enclosure Type
Totally Enclosed Fan Cooled

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3/4 HP, Nameplate RPM 835, Frame 145TC, Voltage 230/460V, 60 Hz Hz, Three Phase, Full Load Amps 2.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 70 Percent, 835, CSA Certified, UL Listed
