Shop CENTURY

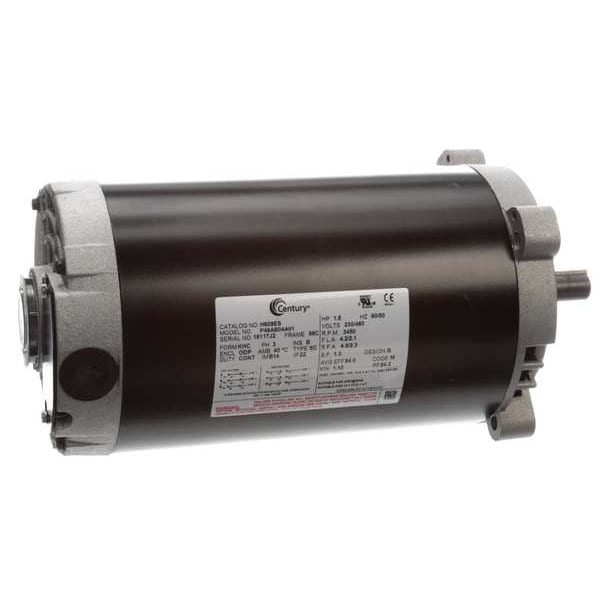

Three-Phase General Purpose Pump Motor, 1 1/2 HP, 56C Frame, 230/460V AC Voltage

  • Mfr # H609ES

  • Zoro # G900905617

product price:  $530.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2
Nameplate RPM
3,450
Voltage
230/460V AC
Motor Mounting Type
Face
Full Load Amps
4.2/2.1 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H609ES
Zoro #
G900905617
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 3/8 in
Overall Length
12 1/2 in
Shaft Dia.
5/8 in
Shaft Length
2 1/8 in
Bolt Circle Dia.
5 7/8 in
Body Diameter
6.5 in
Frame Size
56C
Bolt Circle Diameter
5 7/8 in
Shaft Diameter
5/8 in
Wire Rope Length
12 1/2 in

Details

Item
General Purpose Pump Motor
HP
1 1/2
Nameplate RPM
3,450
Voltage
230/460V AC
Motor Mounting Type
Face
Full Load Amps
4.2/2.1 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.3
Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
RPM Range
3,001-3,600
Phase
Three
No. of Speeds
1
Motor Application
General Application
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
104 Degrees F
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Standards
CE Certified, CSA Certified, UL Recognized
NEMA Design
None
Weight
25 lb
Motor Thermal Protection
None
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Bearing Protection
Shaft Shields
Usable @ 208V
Not Usable at 208V
Shaft Design
Keyed
Number of Wires
9
Frame Material
Steel
Bearing Protection Type
Shaft Shields
Insulation Class
B
Application
Pump
Efficiency Rating
Standard Efficiency (IE1)
Nameplate Service Factor @ 60 Hz
1.3
Product Type
Pump Motor
Bearing Type
Ball
Number of Speeds
1
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 60 Hz
4.2/2.1 A
Frequency
60 Hz

Description

General Purpose Pump Motor, Bearing Protection Shaft Shields, Bolt Circle Dia. 5 7/8 in, Duty Cycle Continuous, Frame 56C, Hz 60 Hz, Full Load Amps 4.2/2.1, HP 1 1/2, Ins. Class B, Length Less Shaft 10 3/8 in, Max. Ambient Temp. 104 Degrees F, Motor Application General Application, Motor Bearings Ball, Motor Design Three-Phase, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
