Dayton

Agricultural Fan Motor, Split-Phase, 1/2 HP, 115/230V AC, 1,725 Nameplate RPM, 56 Frame

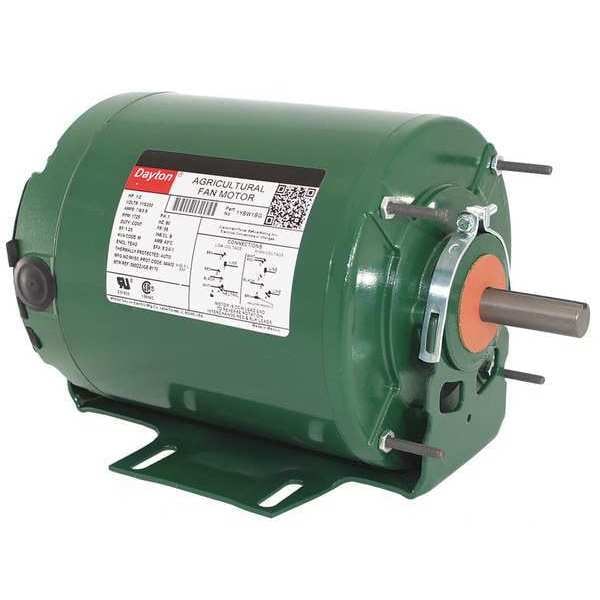

Dayton Agricultural Fan Motor,  Split-Phase,  1/2 HP,  115/230V AC,  1,725 Nameplate RPM,  56 Frame 1YBW1
Hover or click to zoom Tap to zoom
$260.74
  • Item: Agricultural Fan Motor
  • Motor Sub Application: Poultry/Livestock Belt Drive Fan
  • Motor Design: Split-Phase
See full product details
This item ships free.

Total: $260.74

Dayton #1YBW1 Specifications

  • Item: Agricultural Fan Motor
  • Motor Sub Application: Poultry/Livestock Belt Drive Fan
  • Motor Design: Split-Phase
  • Phase: Single
  • HP: 1/2
  • RPM Range: 1,701-1,800
  • Voltage: 115/230V AC
  • Frame: 56
  • Motor Service Factor: 1.25
  • Motor Thermal Protection: Auto
  • Motor Enclosure Design: Totally Enclosed Air-Over
  • Nameplate RPM: 1,725
  • Motor Application: Farm Duty
  • Motor Frame Material: Rolled Steel
  • Motor Mounting Position: Horizontal
  • Motor Mounting Type: Cradle Base
  • Motor Shaft Design: Keyed
  • Motor Shaft Rotation: CW/CCW
  • Standards: CSA Certified (258501), UL Recognized (E37403)
  • Overall Length: 10 13/16 in
  • Hz: 60
  • Ins. Class: B
  • Max. Ambient Temperature: 40 Degrees C
  • Length Less Shaft: 8 15/16 in
  • Finish: Green
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
  • Full Load Amps: 7.6/3.8
  • Nominal Efficiency: 68.7 %
  • Includes: Shaft Key, Shaft Slinger, Gasketed Wiring Compartment Cover, Extended Thru-Bolts
  • Duty: Continuous Air Over
  • Shaft Dia.: 5/8 in
  • Shaft Length: 1 7/8 in
  • Item - Farm Duty Motors: Agricultural Fan Motor
  • Motor Bearings: Ball
  • Duty Cycle: Continuous
  • Max. Ambient Temp.: 40 Degrees C
  • No. of Speeds: 1
  • Country of Origin (subject to change): Mexico

Description

Agricultural Fan Motor, Single Phase, Motor Design Split-Phase, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 7.6/3.8, 56 Frame, 60 Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel, Finish Green
