Contact our U.S. based teamSpecifications
Product Information
MFR #
UB05CCLA2F
Zoro #
G3400004
UPC #
-
Country of Origin
United States
Dimensions
Shaft Dia.
1/4 in
Length Less Shaft
2 3/4 in
Body Dia.
3 1/2 in
Overall Length
3 1/8 in
Bolt Circle Dia.
2 13/16 in
Shaft Length
3/8 in
Description

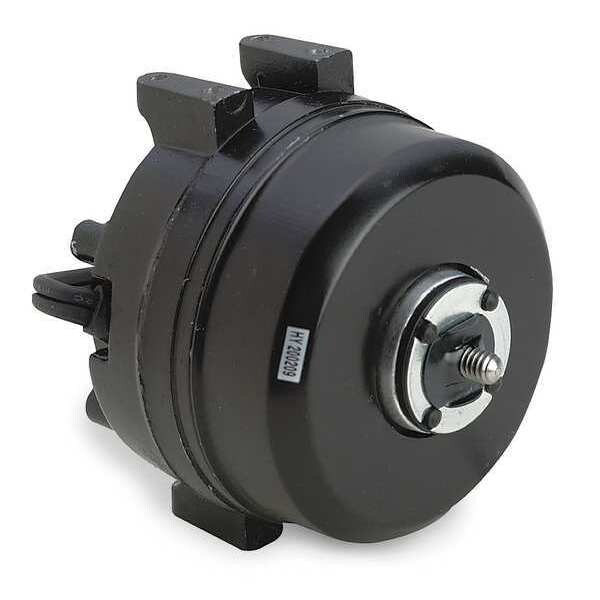

Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/150 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, 0.34 A Full Load Amps, Non-Standard Frame, Output Watts 5 W, 60/50 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Impedance, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Aluminum
