  11. Unit Heater Motor, 1/12 HP, 1550,115 V, 42Y
This item is Discontinued.

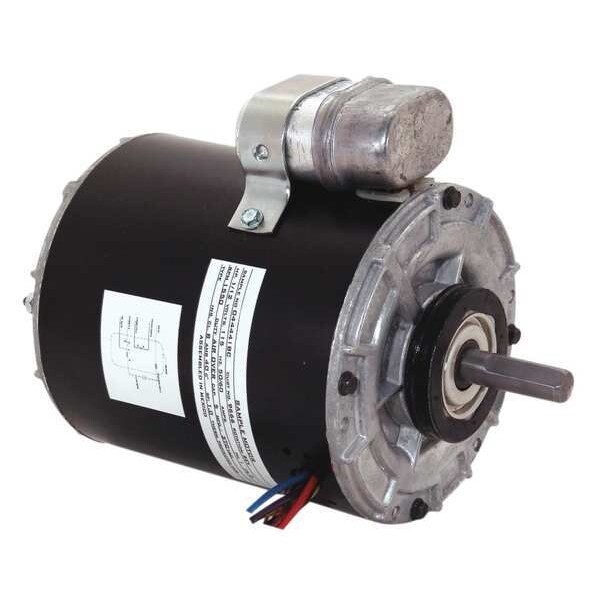

Century Unit Heater Motor, 1/12 HP, 1550,115 V, 42Y 9666

Unit Heater Motor, 1/12 HP, 1550,115 V, 42Y (Discontinued)

  • Mfr # 9666
  • Zoro # G0290044
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9666
Zoro #
G0290044
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
5 in
Ring Dia.
2 1/4 in
Shaft Length
2 in
Length Less Shaft
6 11/16 in
Shaft Dia.
3/8 in
Overall Length
9 in
Resilient Ring Dia.
2 1/4 in
Lead Length
12 in

Details

Item
Unit Heater Motor
Motor Design
Permanent Split Capacitor
HP
1/12
Nameplate RPM
1,550
Voltage
115V AC
Frame
42Y
Motor Enclosure Design
Totally Enclosed
Motor Mounting Type
Ring
RPM Range
1,501-1,600
Motor Application
HVAC/R
Motor Service Factor
1
Full Load Amps
1.06 A
Motor Sub Application
Unit Heater
Ins. Class
B
Includes
Resilient Mounting Ring
Application
Unit Heaters and Other Shaft-mounted Fan and Blower Equipment in Dusty, Dirty, Noncombustible Environments
Motor Bearings
Sleeve
Hz
50 Hz
Motor Efficiency Group
Standard Efficient
Phase
Single
Ring to Ring Center
6 5/16 in
Motor Thermal Protection
Auto
No. of Speeds
1
Duty
Continuous
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Max. Ambient Temp.
40 Degrees C
Standards
CSA Certified, UL Recognized
Service Factor @ 50Hz
1
Voltage @ 50Hz
115V AC
Motor Frame Material
Steel
Usable @ 208V
No
RPM @ 50Hz
1,550 RPM
Stud Quantity
4
Full Load Amps @ 50Hz
1.60 A
HP @ 50Hz
1/12
Mounting Holes
(4) #10-32
Motor Mounting Position
Horizontal
Capacitor Required
Included
Weight
11 lb
Motor Shaft Design
Flat
Number of Shafts
1
Usable @ 200V
No
Number of Speeds
1
Mounting
Ring
Ambient Temperature
40 Degrees C

Description

Unit Heater Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/12 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 1.06 A, 42Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 50 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Lead Length 12 in, Motor Enclosure Design Totally Enclosed, Motor Mounting Type Ring, Motor Mounting Position Horizontal, Number of Shafts 1
