This item is Discontinued.

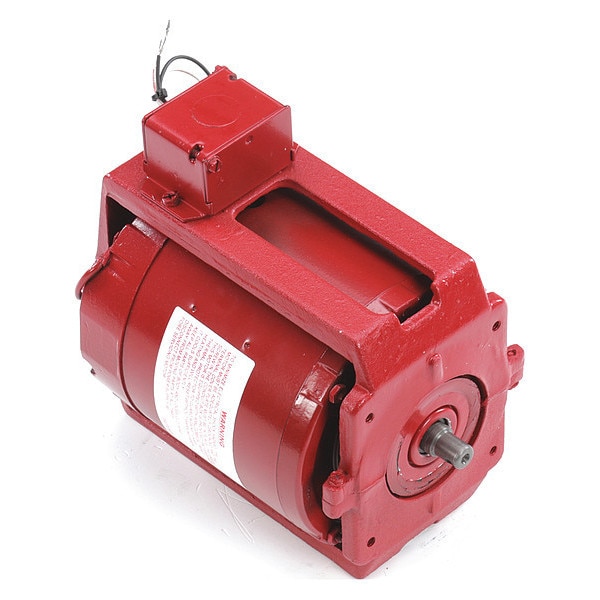

Century Water Circulator Motor, NEMA/IEC, Bracket HW2014B1L

Water Circulator Motor, NEMA/IEC, Bracket (Discontinued)

  • Mfr # HW2014B1L
  • Zoro # G0902221
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HW2014B1L
Zoro #
G0902221
UPC #
-
Country of Origin
Mexico

Dimensions

Bolt Circle Dia.
4 5/8 in
Ring Dia.
2 1/4 in
Resilient Ring Dia.
2 1/4 in
Length Less Shaft
7 7/16 in
Overall Length
8 5/16 in
Shaft Dia.
1/2 in
Height
7 3/4 in
Body Dia.
5.6 in
Shaft Length
13/16 in
Bolt Circle Diameter
4 5/8 in
Body Diameter
5 9/16 in

Details

Item
Circulating Pump Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/6
RPM Range
1,701-1,800
Nameplate RPM
1,725
Frame
48Z
Voltage
115V AC
Phase
Single
Motor Mounting Type
Cradle Base
Ins. Class
B
Motor Sub Application
Water Circulator
Hz
60
Full Load Amps
3.5
Motor Shaft Rotation
CCW
Motor Application
Pump
Motor Bearings
Sleeve
Motor Thermal Protection
Auto
Ring to Ring Center
6 11/16 in
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Replacement For
Mfr. No. HW2014B1
Max. Ambient Temp.
50 Degrees C
Standards
CSA, UL Listed
Motor Service Factor
1.75
Motor Frame Material
Steel
Motor Shaft Design
Spot Drill
Weight
30 lb
Usable @ 200V
No
No. of Speeds
1
Duty Cycle
Continuous
Usable @ 208V
No
Finish
Red
Motor Mounting Position
All Angle
Conduit Box Position
F3
Horsepower
1/6
Frequency
60 Hz
Nameplate Voltage
115V AC
Maximum RPM
1,725 RPM
Full Load Current
3.5 A
Maximum Ambient Temperature
122 Degrees F
Compatible with Pump Type
In-Line Circulating Pumps
Number of Speeds
1

Description

Circulating Pump Motor, Compatible with Pump Type In-Line Circulating Pumps, Horsepower 1/6, Maximum Ambient Temperature 122 Degrees F, Maximum RPM 1,725 RPM, Motor Enclosure Design Open Dripproof, Motor Thermal Protection Auto, Nameplate Voltage 115V AC, Number of Speeds 1, Phase Single, Body Diameter 5 9/16 in, Bolt Circle Diameter 4 5/8 in, Frame 48Z, Frequency 60 Hz, Full Load Current 3.5 A, Standards CSA, UL Listed
