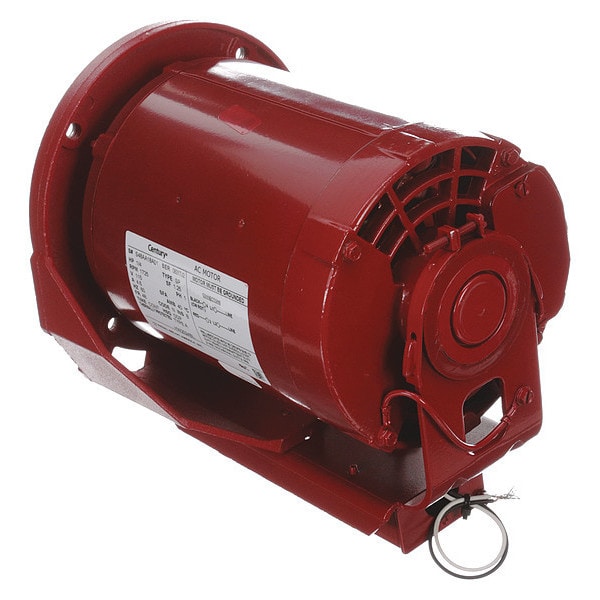

Century Water Circulator Motor, NEMA/IEC, Bracket HW2024BL - main

Water Circulator Motor, NEMA/IEC, Bracket

  • Mfr # HW2024BL

  • Zoro # G1967542

product price: $293.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Motor Enclosure Design
Open Drip Proof
HP
1/4
RPM Range
1,701-1,800
Nameplate RPM
1,725
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HW2024BL
Zoro #
G1967542
UPC #
-
Country of Origin
Mexico

Dimensions

Resilient Ring Dia.
2 1/2 in
Ring Dia.
2 1/2 in
Bolt Circle Dia.
5 7/8 in
Shaft Length
5/8 in
Length Less Shaft
8 3/8 in
Shaft Dia.
1/2 in
Overall Length
8 15/16 in
Bolt Circle Diameter
5 7/8 in

Details

Item
Circulating Pump Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Drip Proof
HP
1/4
RPM Range
1,701-1,800
Nameplate RPM
1,725
Frame
48
Voltage
115V AC
Phase
Single
Motor Mounting Type
Cradle Base
Motor Service Factor
1.25
Motor Sub Application
Water Circulator
Motor Application
Pump
Replacement For
Mfr. No. HW2024B
Hz
60
Motor Shaft Rotation
CW/CCW
Ins. Class
B
Ring to Ring Center
8 3/8 in
Motor Bearings
Ball
Max. Ambient Temp.
50 Degrees C
Full Load Amps
4.6
Motor Thermal Protection
Auto
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Standards
CSA, UL Listed
Motor Frame Material
Steel
Motor Shaft Design
Spot Drill
No. of Speeds
1
Motor Mounting Position
All Angle
Usable @ 208V
No
Weight
19 lb
Usable @ 200V
No
Finish
Red
Duty Cycle
Continuous
Conduit Box Position
F3
Horsepower
1/4 hp
Compatible with Pump Type
In-Line Circulating Pumps
Frequency
60 Hz
Maximum Ambient Temperature
122 Degrees F
Nameplate Voltage
115V AC
Maximum RPM
1,725 RPM
Full Load Current
4.6 A
Number of Speeds
1
Revolutions Per Minute - Maximum
1,725 RPM
Compatible with Brand
Century
Ambient Temperature - Maximum
122 Degrees F
Motor Frame Designation
48
Electrical Connection Type
Plug-In
Thermal Protection
Auto

Description

Circulating Pump Motor, Compatible with Brand Century, Compatible with Grainger Part Number Not Applicable, Compatible with Manufacturer Model Number Not Applicable, Compatible with Pump Type In-Line Circulating Pumps, Compatible with Series Not Applicable, Horsepower 1/4 hp, Maximum Ambient Temperature 122 Degrees F, Maximum RPM 1,725 RPM, Motor Enclosure Design Open Drip Proof, Motor Thermal Protection Auto, Nameplate Voltage 115V AC, Number of Speeds 1, Phase Single
