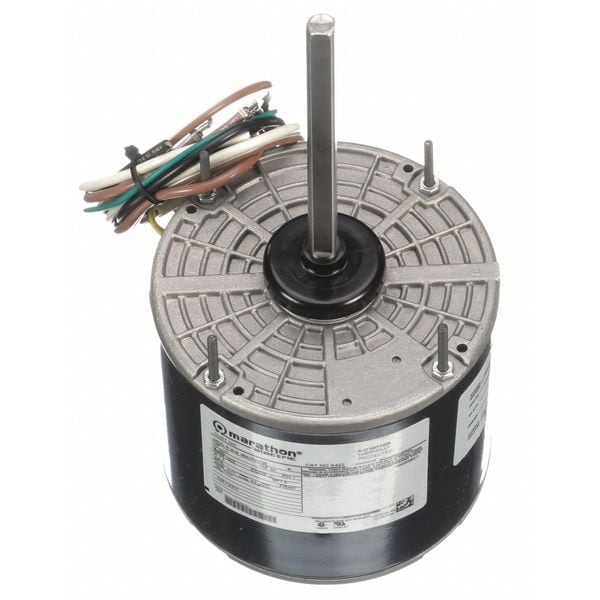

Condenser Fan Motor, 1/2 hp

  • Mfr # 048A17O172
  • Zoro # G2034761
product price:
$
307.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,601-1,700
No. of Speeds
1
Voltage
460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
048A17O172
Zoro #
G2034761
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
11 15/16 in
Shaft Length
6 in
Body Dia.
5 11/16 in
Shaft Dia.
1/2 in
Length Less Shaft
5 15/16 in
Bolt Circle Dia.
1 1/4 in
Stud Size
#8-32
Lead Length
30 in
Shaft Diameter
1/2 in
Body Diameter
5.7 in
Bolt Circle Diameter
1 1/4 in
Mounting Stud Thread Size
#8-32
Frame Size
48Y
Wire Rope Length
11 15/16 in
Length
11 15/16 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,601-1,700
No. of Speeds
1
Voltage
460V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Stud
Motor Service Factor
1
Motor Mounting Position
Horizontal or Vertical Shaft Up
Capacitor Required
Capacitor Included
Ins. Class
B
Motor Sub Application
Condenser Fan
Item
Condenser Fan Motor
Mounting Stud Pattern
3 5/8 in
Hz
60 Hz
Motor Bearings
Ball
Nominal Efficiency
64 %
Full Load Amps
1.7 A
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 220V AC to 230V AC, 460V AC, 220V AC, 460V AC, 230V AC, 460V AC, 796V AC, 230V AC, 460V AC, 440V AC to 460V AC, 460V AC, 796V AC, 460V AC
Motor Thermal Protection
Auto
Application
Condenser Fan
Nameplate RPM
1,625
Stud Quantity
4
Duty
Continuous
Motor Shaft Design
Flat
Features
Shaft Slinger, Shaft With Flat, Thru Bolt, Weather Resistant Reversing Plug
Motor Application
HVAC/R
Standards
CSA Certified, UL Recognized
Duty Cycle
Continuous
Conduit Box Position
F1
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Weight
15 lb
Conduit Box Location
Exterior
Usable @ 208V
Not Usable at 208V
Extended Thru-Bolts
Yes
Removable Base
No
Output Watts
370 W
Insulation Class
B
Wattage
370 W
Mounting Position
Horizontal/Vertical Shaft Up
Sub Application
Condenser Fan
Motor Enclosure Type
Open Air Over
Frame Material
Steel
Full Load Current @ 60 Hz
1.7 A
Frequency
60 Hz
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Product Type
Condenser Fan Motor
Drive Type
Direct Drive
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Flat

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 1, Voltage 460V AC, 1.7 A Full Load Amps, 48Y Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
